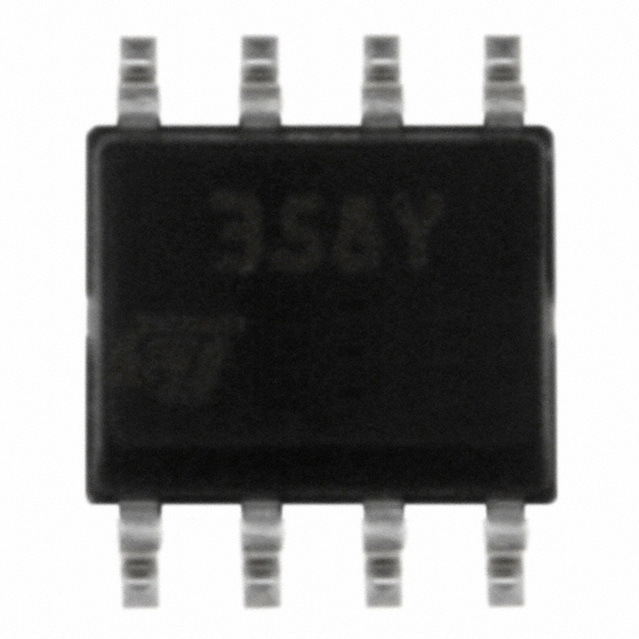

低功耗双运算放大器 Low power dual operational amplifiers
通用 放大器 2 电路 - 8-SOIC
得捷:
IC OPAMP GP 2 CIRCUIT 8SOIC
立创商城:
LM358YDT
贸泽:
Operational Amplifiers - Op Amps Integrated Circuits ICs Amplifiers - Instrumentation, OP Amps, Buffer Amps - IC OP AMP DUAL LP 8-SOIC
艾睿:
If you need your circuit to amplify a voltage signal then this general purpose amplifier LM358YDT OP amp from STMicroelectronics is perfect for you! Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1.5 V and maximum of ±15 V. This op amp has a temperature range of 0 °C to 70 °C. This device utilizes bipolar technology. It has 2 channels per chip. This device uses one or two power supplies.
Verical:
OP Amp Dual GP ±15V/30V Automotive 8-Pin SO N T/R
儒卓力:
**2xOP 1.1MHz 0.6V/µs SO8 _SMD **
DeviceMart:
IC OP AMP DUAL LP 8-SOIC
Win Source:
IC OPAMP GP 1.1MHZ 8SO
输出电流 40 mA
供电电流 700 µA
电路数 2
通道数 2
共模抑制比 85 dB
增益频宽积 1.1 MHz
输入补偿电压 2 mV
输入偏置电流 0.02μA @5V
工作温度Max 70 ℃
工作温度Min 0 ℃
共模抑制比Min 70 dB
电源电压Max 30 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM358YDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM358DT 意法半导体 | 类似代替 | LM358YDT和LM358DT的区别 |
LM2904DT 意法半导体 | 类似代替 | LM358YDT和LM2904DT的区别 |
LM258D 意法半导体 | 类似代替 | LM358YDT和LM258D的区别 |
