LMV321LICT

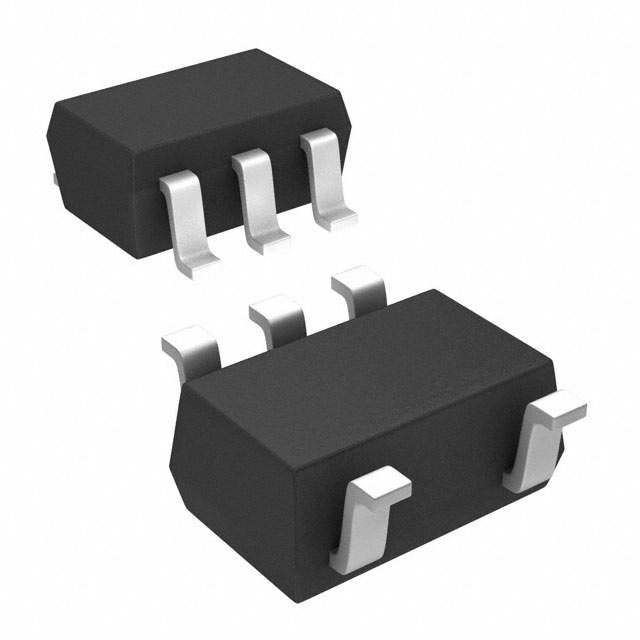

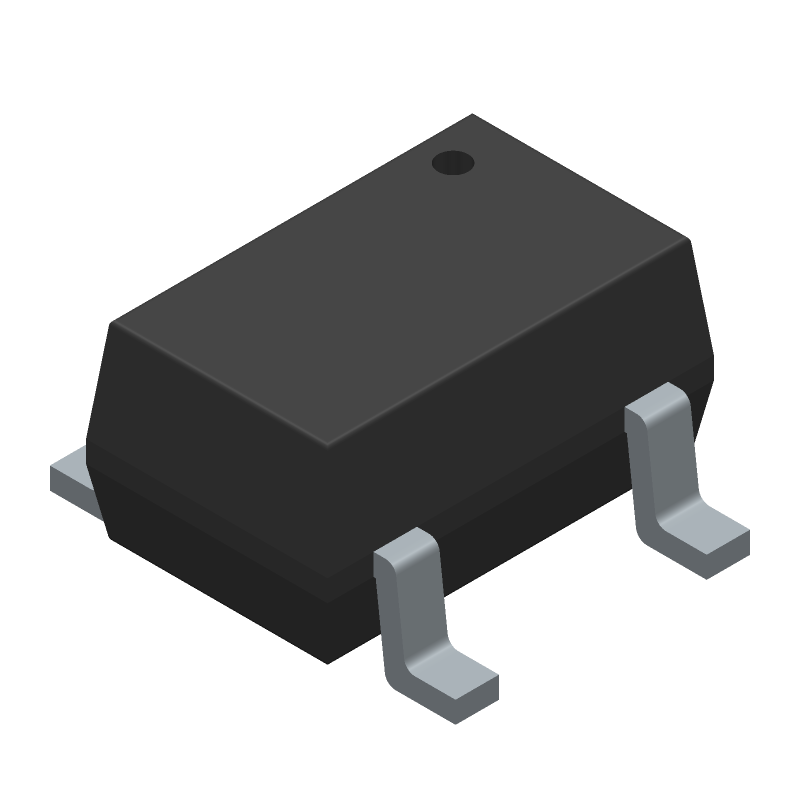

LMV321L 系列 5.5 V 1.3 MHz 通用 运算放大器 - SC-70-5

Description

The LMV321L, LMV358L, and LMV324L are single, dual and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages 2.7 V to 5 V with enhanced performances compared to the industry standard LM3xx series. The LMV321L, LMV358L, and LMV324L are offered in tiny packages, allowing the devices to

be used in small portable electronic applications and to be placed closer to the actual signal.

Features

• Low-power consumption: 250 µA max at 5 V

• Low offset voltage: 7 mV max at 25 °C

• Industrial temperature range: -40 °C to +125 °C

• Low supply voltage: 2.7 V - 5.5 V

• Gain bandwidth product: 1.3 MHz

• Tiny packages

Applications

• Battery-powered applications

• Portable devices

• Signal conditioning

• Active filtering

• Medical instrumentation
