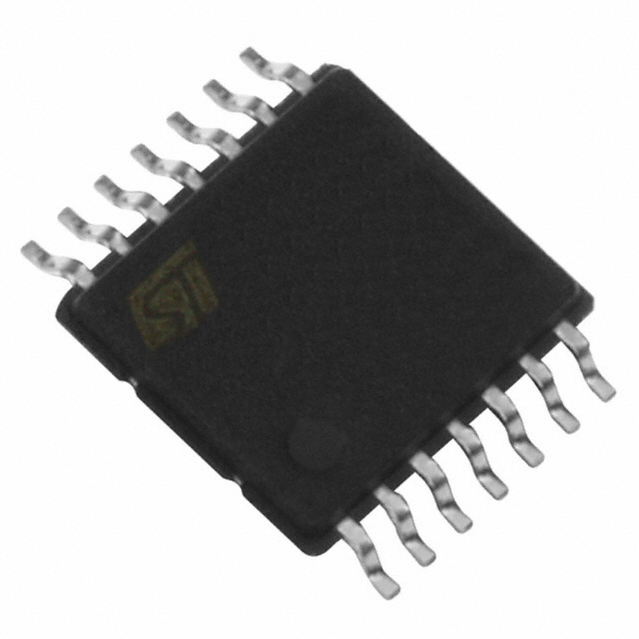

LM224 系列 TSSOP14 高增益 低功耗 四通道 运算放大器
Op Amp Quad GP ±15V/30V 14-Pin TSSOP T/R
得捷:
IC OPAMP GP 4 CIRCUIT 14TSSOP
立创商城:
LM224PT
欧时:
ST LM224PT
艾睿:
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier LM224PT OP amp from STMicroelectronics produces a large amount of gain. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1.5 V and maximum of ±15 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has 4 channels per chip. This device is made with bipolar technology. This device uses one or two power supplies.
安富利:
OP Amp Quad GP ±15V/30V 14-Pin TSSOP T/R
Chip1Stop:
OP Amp Quad GP ±15V/30V 14-Pin TSSOP T/R
Verical:
Op Amp Quad Low Power Amplifier ±15V/30V 14-Pin TSSOP T/R
Online Components:
Op Amp Quad GP ±15V/30V 14-Pin TSSOP T/R
DeviceMart:
IC OP AMP LP QUAD 14-TSSOP
Win Source:
IC OPAMP GP 1.3MHZ 14TSSOP
输出电流 40 mA
供电电流 1.5 mA
电路数 4
通道数 4
针脚数 14
耗散功率 400 mW
共模抑制比 70 dB
带宽 1.3 MHz
转换速率 400 mV/μs
增益频宽积 1.3 MHz
输入补偿电压 2 mV
输入偏置电流 20 nA
工作温度Max 105 ℃
工作温度Min -40 ℃
增益带宽 1.3 MHz
共模抑制比Min 70 dB
电源电压 3V ~ 30V
电源电压Max 30 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
宽度 4.4 mm
封装 TSSOP-14
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM224PT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM224DTBR2G 安森美 | 功能相似 | LM224PT和LM224DTBR2G的区别 |
ADA4091-4ARUZ 亚德诺 | 功能相似 | LM224PT和ADA4091-4ARUZ的区别 |
LM224P 意法半导体 | 功能相似 | LM224PT和LM224P的区别 |
