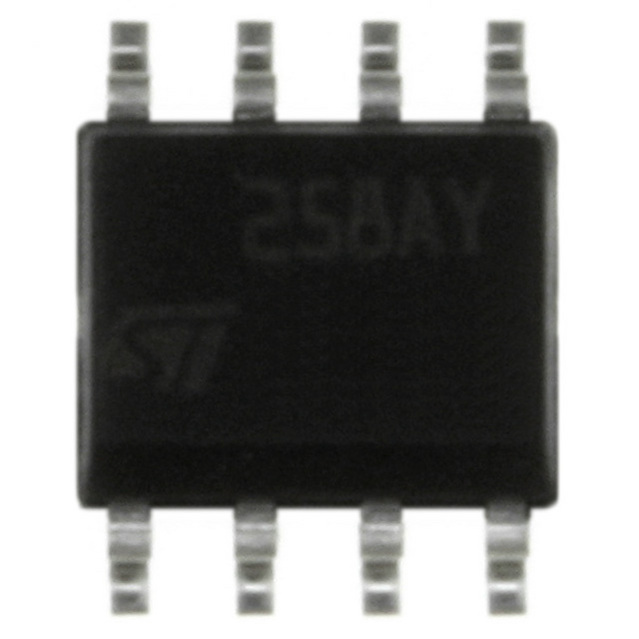

低功耗双运算放大器 Low power dual operational amplifiers
General Purpose Amplifier 2 Circuit 8-SO
立创商城:
LM258AYDT
得捷:
IC OPAMP GP 2 CIRCUIT 8SOIC
贸泽:
运算放大器 - 运放 LP Dual Op-Amp 100dB 1.1MHz
艾睿:
To increase the amount of gain in your circuit use a multiple number of this general purpose amplifier LM258AYDT OP amp from STMicroelectronics in a cascaded fashion. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1.5 V and maximum of ±15 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has 2 channels per chip. This device is made with bipolar technology. This device uses one or two power supplies.
安富利:
OP Amp Dual GP ±15V/30V 8-Pin SO N T/R
Chip1Stop:
OP Amp Dual GP ±15V/30V Automotive 8-Pin SO N T/R
Verical:
Op Amp Dual Low Power Amplifier ±15V/30V Automotive 8-Pin SO N T/R
儒卓力:
**2xOP 1.1MHz 0,6V/µs SO8 _SMD **
DeviceMart:
IC OP AMP DUAL LP 8-SOIC
Win Source:
IC OPAMP GP 1.1MHZ 8SO
输出电流 60 mA
供电电流 700 µA
电路数 2
针脚数 8
共模抑制比 70 dB
带宽 1.1 MHz
增益频宽积 1.1 MHz
输入补偿电压 3 mV
输入偏置电流 50 nA
工作温度Max 105 ℃
工作温度Min -40 ℃
增益带宽 1.1 MHz
共模抑制比Min 70 dB
电源电压 3V ~ 30V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM258AYDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM258AYD 意法半导体 | 完全替代 | LM258AYDT和LM258AYD的区别 |
