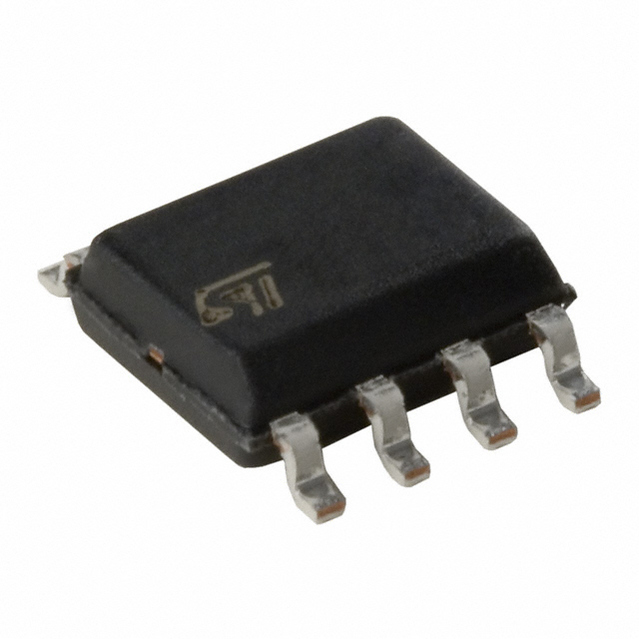

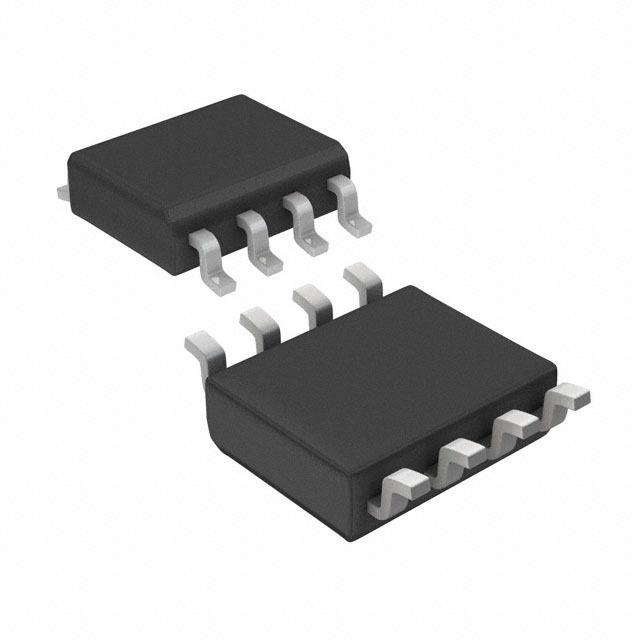

LM2904 系列 30 V 1.1 MHz 低功耗 双 运算放大器 - SOIC-8
Description
This circuit consists of two independent, high gain, internally frequency-compensated operational amplifiers, designed specifically for automotive and industrial control systems. It operates from a single power supply over a wide range of
voltages. The low power supply drain is independent of the magnitude of the power supply voltage.
Features
■ Internally frequency compensated
■ Large DC voltage gain: 100 dB
■ Wide bandwidth unity gain: 1.1 MHz temperature compensated
■ Very low supply current per operator 500 µA
■ Low input bias current: 20 nA temperaturecompensated
■ Low input offset current: 2 nA
■ Input common-mode voltage range includes ground
■ Differential input voltage range equal to the power supply voltage
■ Large output voltage swing 0 V to VCC - 1.5 V
■ Internal ESD protection:
– 2 kV HBM
– 200 V MM
输出电流 60 mA
供电电流 700 µA
电路数 2
通道数 2
耗散功率 1000 mW
共模抑制比 70 dB
转换速率 600 mV/μs
增益频宽积 1.1 MHz
输入补偿电压 2 mV
输入偏置电流 20 nA
工作温度Max 150 ℃
工作温度Min -40 ℃
增益带宽 1.1 MHz
共模抑制比Min 70 dB
电源电压 3V ~ 30V
电源电压Max 30 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2904WHDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM2904WHD 意法半导体 | 类似代替 | LM2904WHDT和LM2904WHD的区别 |
LM2904QDRQ1 德州仪器 | 功能相似 | LM2904WHDT和LM2904QDRQ1的区别 |
LM2904VQDRQ1 德州仪器 | 功能相似 | LM2904WHDT和LM2904VQDRQ1的区别 |
