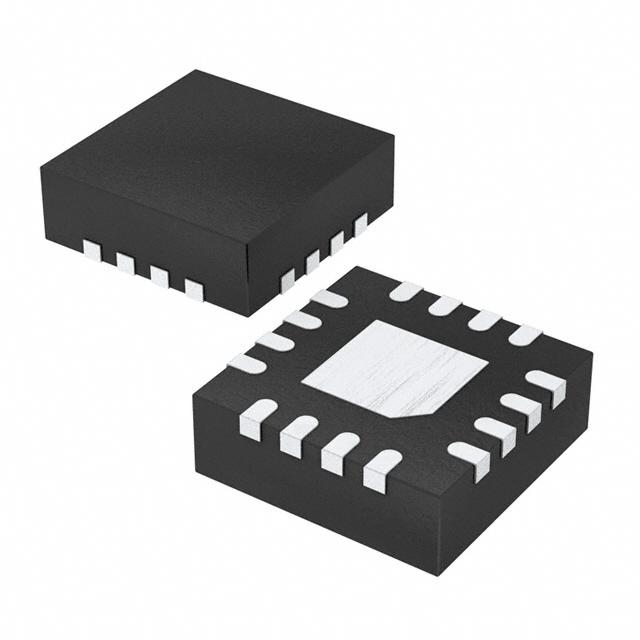

LM324QT

LM324 系列 32 V 1.3 MHz 低功耗 四通道 运算放大器 - QFN-16

These circuits consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages.

Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.

**Key Features**

.

Wide gain bandwidth: 1.3 MHz

.

Input common mode voltage range includes ground

.

Large voltage gain: 100 dB

.

Very low supply current/amplifier: 375 µA

.

Low input bias current: 20 nA

.

Low input voltage: 3 mV max

.

Low input offset current: 2 nA

.

Wide power supply range:

.

Single supply: 3 V to 30 V

.

Dual supplies: ±1.5 V to ±15 V
