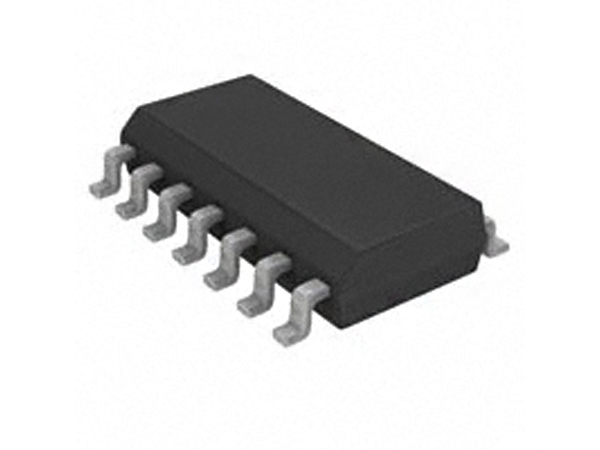

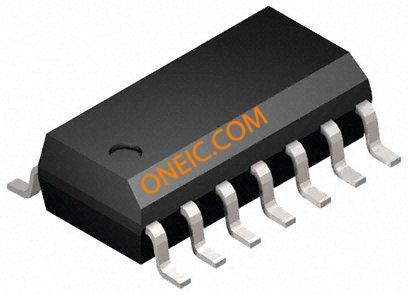

FAIRCHILD SEMICONDUCTOR LM324AMX 运算放大器, 四路, 4个放大器, 3V 至 32V, ± 1.5V 至 ± 16V, SOP, 14 引脚
The is a high gain internally frequency compensated quad Operational Amplifier designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3 to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply systems.
- .
- Internally frequency compensated for unity gain
- .
- Input common-mode voltage range includes ground
- .
- Power drain suitable for battery operation
- .
- 100dB Large DC voltage gain
输出电流 40 mA
供电电流 1.5 mA
电路数 4
通道数 4
针脚数 14
耗散功率 0.64 W
共模抑制比 65 dB
转换速率 500 mV/μs
输入补偿电压 1.5 mV
输入偏置电流 40 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 640 mW
共模抑制比Min 65 dB
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.76 mm
宽度 4.2 mm
高度 1.65 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM324AMX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
LM324AM 飞兆/仙童 | 完全替代 | LM324AMX和LM324AM的区别 |
LM224ADR 德州仪器 | 功能相似 | LM324AMX和LM224ADR的区别 |
LM324ADR 德州仪器 | 功能相似 | LM324AMX和LM324ADR的区别 |
