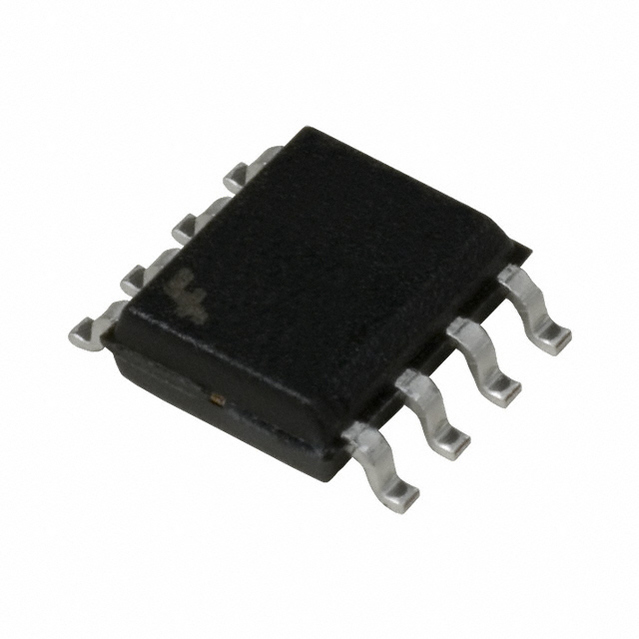

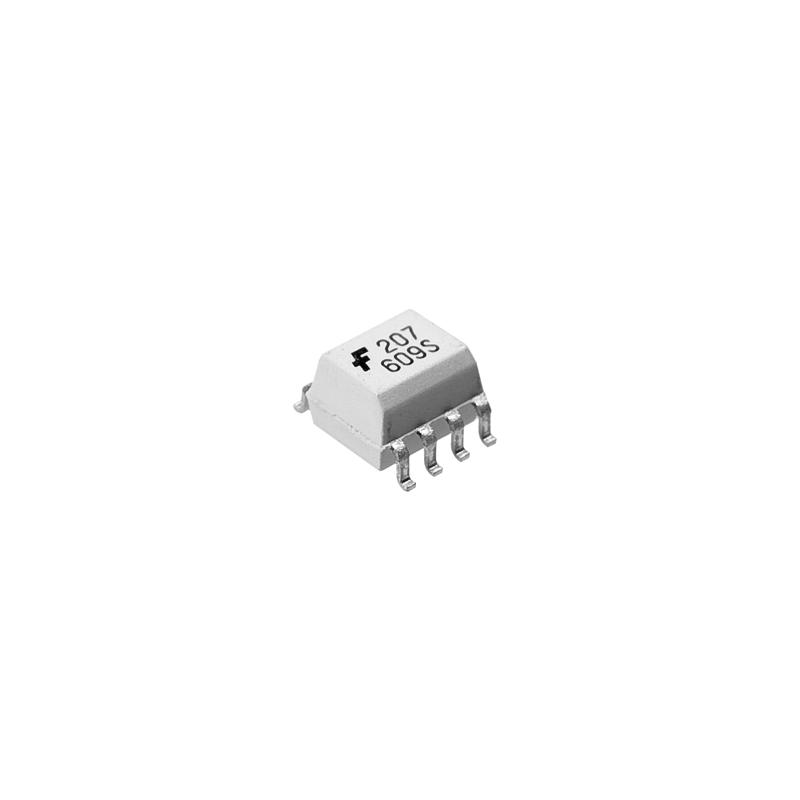

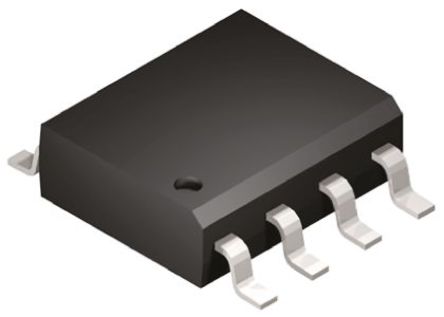

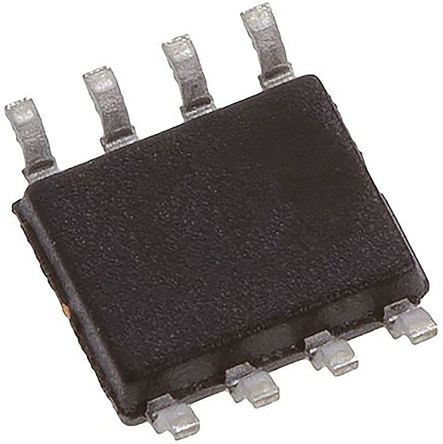

FAIRCHILD SEMICONDUCTOR LMV358AM8X 运算放大器, 双路, 1.4 MHz, 2个放大器, 1.5 V/µs, 2.5V 至 5.5V, SOIC, 8 引脚
The is a dual Voltage Feedback Operational Amplifier consumes only 80µA of supply current per amplifier. The LMV3XX family is designed to operate from 2.7 to 5.5V supplies. The common-mode voltage range extends below the negative rail and the output provides rail-to-rail performance. The LMV3XX family is designed on a CMOS process and provides 1.2MHz of bandwidth and 1.5V/µs of slew rate at a low supply voltage of 2.7V. The combination of low power, rail-to-rail performance and low voltage operation make the LMV3XX family well suited for use in personal electronics equipment, such as cellular handsets, pagers, PDAs and other battery-powered applications.
- .
- General-purpose amplifier
供电电流 100 µA
电路数 2
通道数 2
针脚数 8
共模抑制比 50 dB
带宽 1.4 MHz
转换速率 1.50 V/μs
增益频宽积 1.4 MHz
输入补偿电压 1 mV
输入偏置电流 1 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1.4 MHz
共模抑制比Min 50 dB
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.98 mm
宽度 3.99 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMV358AM8X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
LM358DR 德州仪器 | 功能相似 | LMV358AM8X和LM358DR的区别 |
LMV358IDR 德州仪器 | 功能相似 | LMV358AM8X和LMV358IDR的区别 |
LM2904DT 意法半导体 | 功能相似 | LMV358AM8X和LM2904DT的区别 |
