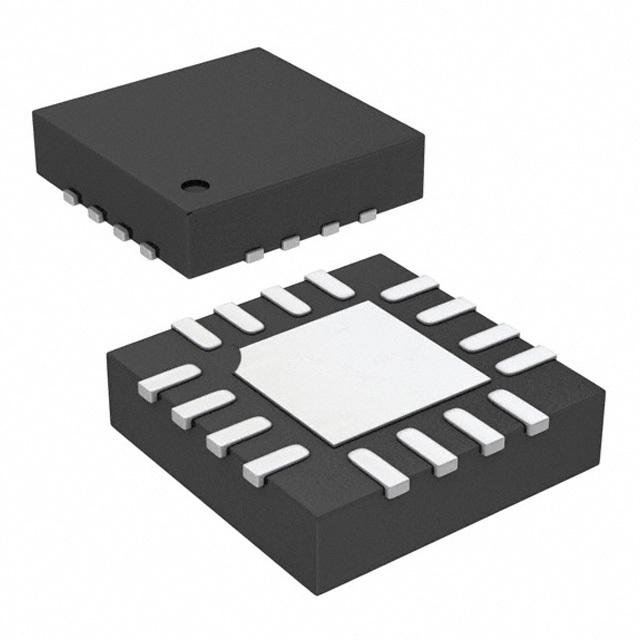

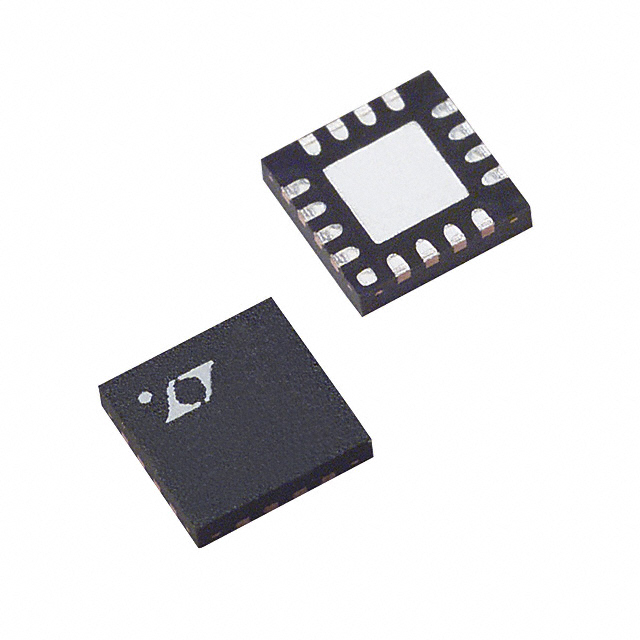

LTC5577IUF#TRPBF

芯片, 射频有源混频器, 下变频器, 射频范围300mHz至6 GHz, QFN-16

The is a 300MHz to 6GHz high signal level Active Down-converting Mixer for RF downconverting applications that require high input signal handling capability and wide bandwidth. The wide band IF output uses external resistors to set the output impedance, allowing the flexibility to match directly into differential IF loads, such as filters and amplifiers. The part is characterized and specified with a 100R differential output impedance, although it can be used with output impedances ranging from 50 to 400R, with higher gain and reduced IIP3 and P1dB at the higher impedance levels. The IF output is usable up to 1.5GHz. In receiver applications, the high input P1dB and IIP3 allow the use of higher gain low noise amplifiers, resulting in higher receiver sensitivity. Integrated transformers on the RF and LO inputs provide single-ended 50R interfaces, while minimizing the solution size.

.

30dBm IIP3

.

15dBm Input P1dB

.

0dB Conversion gain

.

Wideband differential IF output

.

IF frequency range up to 1.5GHz

.

Low LO-RF leakage

.

LO input 50R matched when shutdown
