LTC5549IUDB#TRMPBF

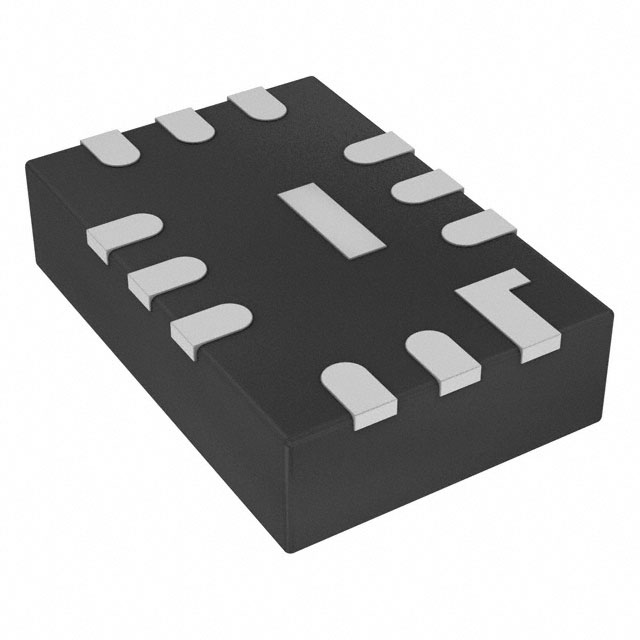

LINEAR TECHNOLOGY  LTC5549IUDB#TRMPBF  芯片, 双路平衡混频器, 2GHZ-14GHZ, QFN12 新

The is a 2 to 14GHz Microwave Mixer with integrated LO frequency doubler. The LTC5549 is a general purpose passive double balanced mixer that can be used for up-conversion or down-conversion. The RF port is designed for the 2 to 14GHz band and the IF port is optimized for 500MHz to 6GHz operation. An integrated LO buffer amplifier supports LO frequencies from 1 to 12GHz, requiring only 0dBm LO power. The LTC5549 delivers high IIP3 and input P1dB with low power consumption. An internal LO frequency doubler can be enabled by a CMOS-compatible digital control pin, allowing operation with a lower, one-half LO input frequency.

.

Up-conversion or down-conversion

.

28.2dBm at 5.8GHz, 22.8dBm at 12GHz High IIP3

.

8dB Conversion loss at 5.8GHz

.

14.3dBm Input P1dB at 5.8GHz

.

0dBm LO drive integrated LO buffer

.

Bypassable integrated LO frequency doubler

.

<-30dBm Low LO-RF leakage

.

50R single-ended RF, LO and IF ports

.

Fast turn ON/OFF for TDD operation
