LT1803CS5#TRMPBF

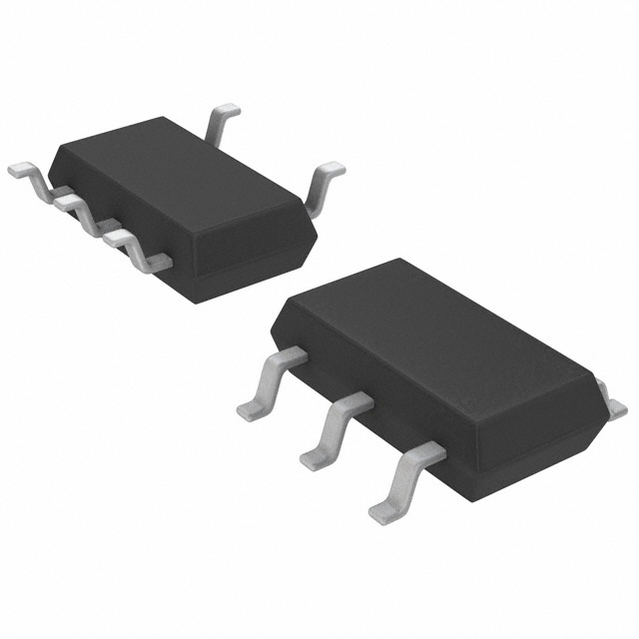

LINEAR TECHNOLOGY  LT1803CS5#TRMPBF  运算放大器, 单路, 85 MHz, 1个放大器, 100 V/µs, 2.3V 至 12.6V, TSOT-23, 5 引脚

The is a single low power high speed rail-to-rail input and output Operational Amplifier with excellent DC performance. The LT1803 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth and slew rate. Typically, the LT1803 has an input offset voltage of 350µV, an input bias current of 125nA and an open-loop gain of 60V/mV. The LT1803 has an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications. The LT1803 is specified at 3, 5 and ±5V supplies and typically maintain their performance for supplies from 2.3 to 12.6V. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

.

Input common mode range includes both rails

.

3mA per Amplifier Maximum low quiescent current

.

42mA Large output current

.

21nV/√Hz Voltage noise

.

90dB Power supply rejection
