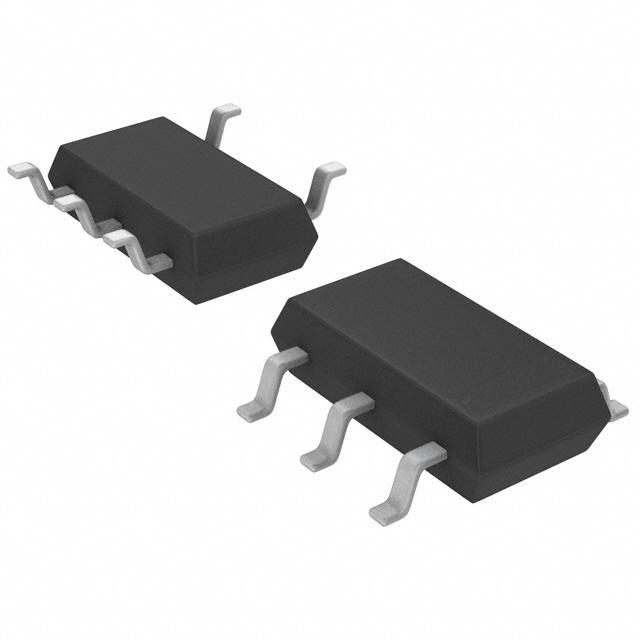

LINEAR TECHNOLOGY LT1722IS5#TRMPBF 运算放大器, 单路, 200 MHz, 1个放大器, 70 V/µs, ± 2V 至 ± 5.5V, SOT-23, 5 引脚
The is a single low noise/power high speed Operational Amplifier feature lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The 200MHz gain bandwidth ensures high open-loop gain at video frequencies. The low input noise voltage is achieved with reduced supply current. The total noise is optimized for a source resistance between 0.8 and 12k. Due to the input bias current cancellation technique used, the resistance seen by each input does not need to be balanced. The output drives a 150R load to ±3 with ±5V supplies. On a single 5V supply the output swings from 1.5 to 3.5V with a 500R load connected to 2.5V. The amplifier is unity-gain stable CLOAD <= 100pF.
输出电流 20mA @5V
供电电流 3.7 mA
电路数 1
针脚数 5
带宽 200 MHz
转换速率 70.0 V/μs
增益频宽积 200 MHz
输入补偿电压 150 µV
输入偏置电流 40 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
共模抑制比Min 80 dB
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Test & Measurement, 射频通信, Signal Processing, 信号处理, 测试与测量, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1722IS5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1722CS5#TRMPBF 凌力尔特 | 完全替代 | LT1722IS5#TRMPBF和LT1722CS5#TRMPBF的区别 |
LT1722CS5#TRPBF 凌力尔特 | 完全替代 | LT1722IS5#TRMPBF和LT1722CS5#TRPBF的区别 |
LT1722IS5#TRPBF 凌力尔特 | 完全替代 | LT1722IS5#TRMPBF和LT1722IS5#TRPBF的区别 |
