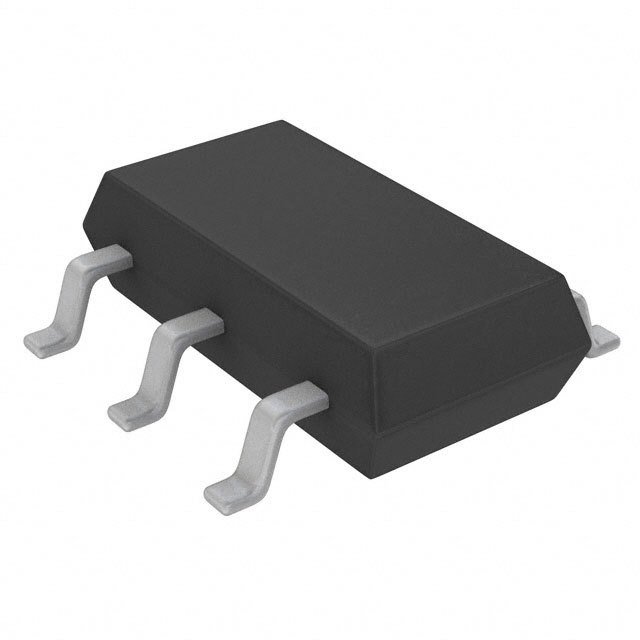

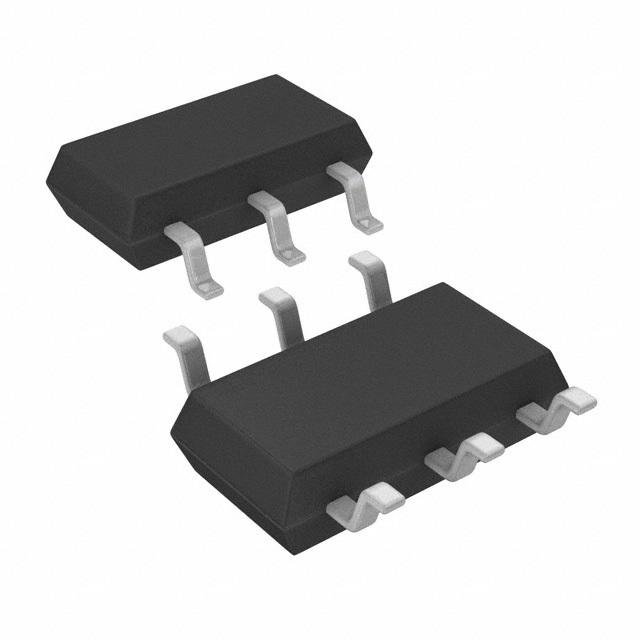

LINEAR TECHNOLOGY LTC6268IS6#TRMPBF Operational Amplifier, Single, 1 Amplifier, 350MHz, 400V/µs, 3.1V to 5.25V, TSOT-23, 6Pins
The is a single 500MHz FET-input Operational Amplifier with extremely low input bias current and low input capacitance. It also features low input referred current noise and voltage noise making it an ideal choice for high speed transimpedance amplifiers, CCD output buffers and high-impedance sensor amplifiers. Its low distortion makes the LTC6268 an ideal amplifier for driving SAR ADCs. It operates on 3.1 to 5.25V supply and consumes 16.5mA per amplifier. A shutdown feature can be used to lower power consumption when the amplifier is not in use.
- .
- 5.5fA/√Hz 100kHz Current noise
- .
- 4.3nV/√Hz 1MHz Voltage noise
- .
- Extremely low CIN 450fF
- .
- Rail-to-rail output
- .
- 400V/µs Slew rate
输出电流 ≤135 mA
供电电流 16.5 mA
电路数 1
针脚数 6
带宽 350 MHz
转换速率 400 V/μs
增益频宽积 500 MHz
输入偏置电流 0.000000003μA @5V
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 350 MHz
共模抑制比Min 60dB ~ 65dB
电源电压 3.1V ~ 5.25V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
高度 0.9 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 信号处理, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6268IS6#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6268HS6#TRMPBF 凌力尔特 | 类似代替 | LTC6268IS6#TRMPBF和LTC6268HS6#TRMPBF的区别 |
LTC6268IS6-10#TRMPBF 凌力尔特 | 类似代替 | LTC6268IS6#TRMPBF和LTC6268IS6-10#TRMPBF的区别 |
