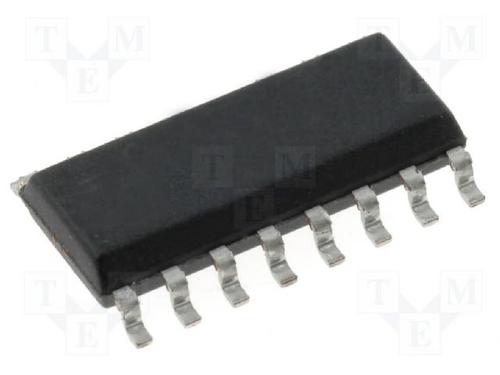

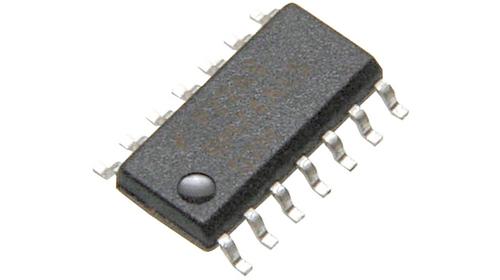

LT1399CS#PBF 管装
To increase the amount of gain in your circuit use a multiple number of this current feedback amplifier OP amp from in a cascaded fashion. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with bipolar technology. This device uses one or two power supplies. It has 3 channels per chip.
电源电压DC 6.30 V
供电电流 4.6 mA
电路数 3
通道数 3
带宽 300 MHz
转换速率 800 V/μs
输入补偿电压 1.5 mV
输入偏置电流 10 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 300 MHz
共模抑制比Min 42 dB
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 1.5 mm
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1399CS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1399CS#TRPBF 凌力尔特 | 类似代替 | LT1399CS#PBF和LT1399CS#TRPBF的区别 |
