LINEAR TECHNOLOGY LT1495CN8#PBF 运算放大器, 双路, 2.7 kHz, 2个放大器, 0.001 V/µs, 2.2V 至 36V, DIP, 8 引脚
The is a lowest power Operational Amplifier with precision specifications. The extremely low supply current is combined with excellent amplifier specifications, input offset voltage is 375mV maximum with a typical drift of only 0.4mV/°C, input offset current is 100pA maximum. A minimum open-loop gain AVOL of 100V/mV ensures that gain errors are small. The device characteristics change little over the supply range of 2.2 to ±15V. Supply rejection is 90dB and the common mode rejection ratio is 90dB. Operation is specified for 3, 5 and ±15V supplies. Reverse battery protection -18V min and inputs that operate above the positive supply make the LT1495 easy to use in harsh environments. The low bias currents and offset current of the amplifier permit the use of mega ohm level source resistors without introducing significant errors. Voltage noise at 4mVP-P is remarkably low considering the low supply current.
供电电流 1.4 µA
电路数 2
针脚数 8
带宽 2.7 kHz
转换速率 1.00 mV/μs
增益频宽积 0.003 MHz
输入补偿电压 200 µV
输入偏置电流 25 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 2.7 kHz
共模抑制比Min 90 dB
电源电压 2.2V ~ 36V
电源电压Max 36 V
安装方式 Through Hole
引脚数 8

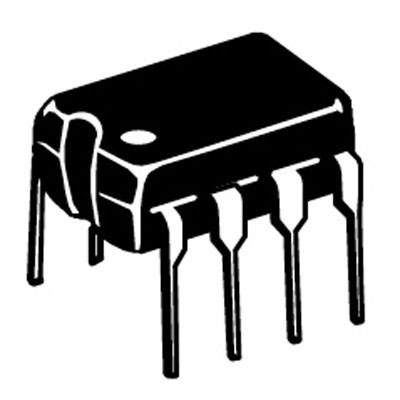

封装 DIP-8
高度 3.3 mm
封装 DIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 传感与仪器, 电源管理, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1495CN8#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1495CN8 凌力尔特 | 类似代替 | LT1495CN8#PBF和LT1495CN8的区别 |
LT1495IN8#PBF 凌力尔特 | 功能相似 | LT1495CN8#PBF和LT1495IN8#PBF的区别 |
LT1495IN8 凌力尔特 | 功能相似 | LT1495CN8#PBF和LT1495IN8的区别 |
