LMS4684ITL/NOPB

TEXAS INSTRUMENTS  LMS4684ITL/NOPB  模拟开关, 双通道, SPDT, 2 放大器, 0.8 ohm, 1.8V 至 5.5V, µBump, 12 引脚

The is a single-pole double-throw SPDT low on-resistance low voltage dual Analog Switch that operates from a 1.8 to 5.5V supply. The LMS4684 features a 0.5R RON for its NC switch and 0.8R RON for its NO switch at a 2.7V supply. The digital logic inputs are 1.8V logic-compatible with a 2.7 to 3.3V supply and features break-before-make switching action.

.

Single supply operation

.

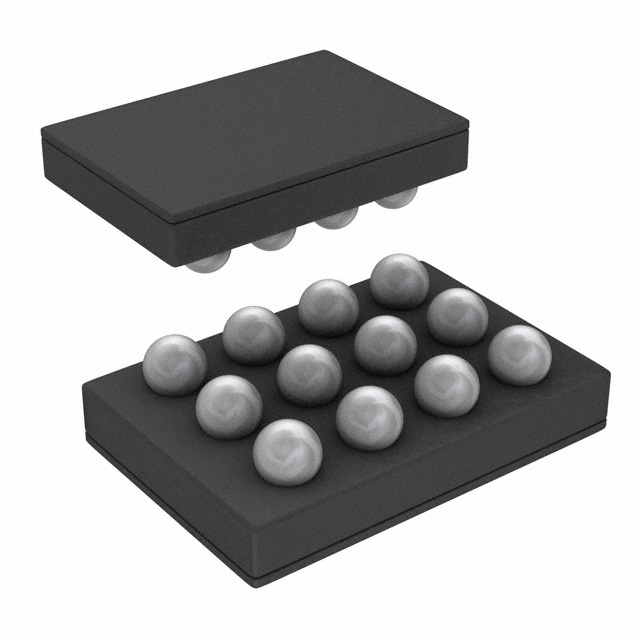

12-bump DSBGA package

.

Green product and no Sb/Br

Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
