LT1810CMS8#PBF

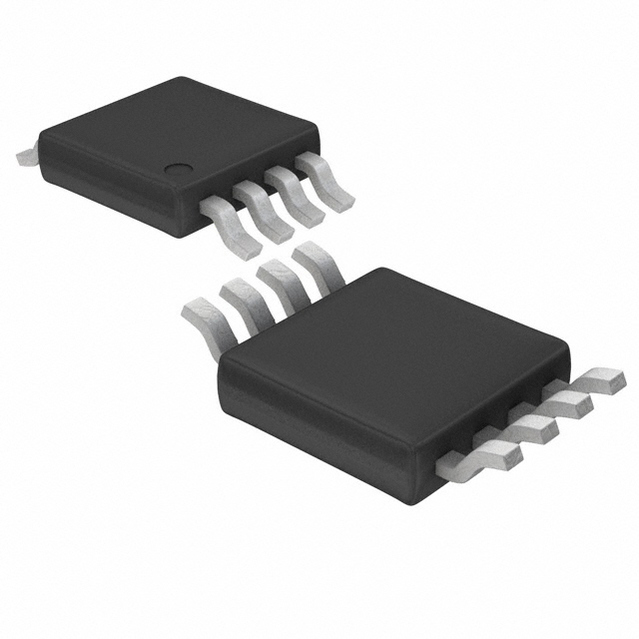

LINEAR TECHNOLOGY  LT1810CMS8#PBF  运算放大器, 双路, 320 MHz, 2个放大器, 300 V/µs, 2.5V 至 12.6V, MSOP, 8 引脚

The is a dual low distortion rail-to-rail input and output Operational Amplifier with a 350V/µs slew rate. The amplifier have a -3dB bandwidth of 320MHz at unity-gain, a gain-bandwidth product of 180MHz AV >= 10 and an 85mA output current to fit the needs of low voltage, high performance signal conditioning systems. The LT1810 have an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications. The LT1810 have very low distortion -90dBc up to 5MHz that allows them to be used in high performance data acquisition systems. The LT1810 maintain their performance for supplies from 2.5 to 12.6V and are specified at 3, 5 and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

.

-90dBc Low distortion, 5MHz

.

2.5mV Maximum input offset voltage, rail-to-rail

.

89dB Typical common mode rejection

.

87dB Typical power supply rejection

.

100V/mV Typical open-loop gain

.

LT1809 Shutdown pin
