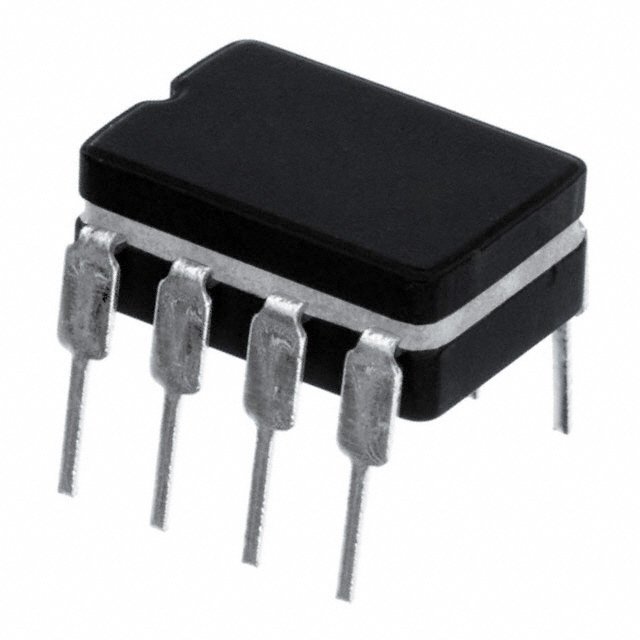

TEXAS INSTRUMENTS LM741J 运算放大器, 单路, 1 MHz, 1个放大器, 0.5 V/µs, 10V 至 44V, DIP, 8 引脚
The is a general-purpose Operational Amplifier offers many features which make their application nearly foolproof, overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.
- .
- Overload protection on the input and output
- .
- No latch-up when the common-mode range is exceeded
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
输出电流 25 mA
供电电流 1.7 mA
电路数 1
通道数 1
针脚数 8
耗散功率 500 mW
共模抑制比 80 dB
输入补偿漂移 15.0 µV/K
带宽 1 MHz
转换速率 500 mV/μs
增益频宽积 1.5 MHz
输入补偿电压 1 mV
输入偏置电流 80 nA
工作温度Max 125 ℃
工作温度Min -55 ℃
增益带宽 70 dB
耗散功率Max 500 mW
共模抑制比Min 70 dB
电源电压 10V ~ 44V
电源电压Max 44 V
电源电压Min 10 V
安装方式 Through Hole
引脚数 8

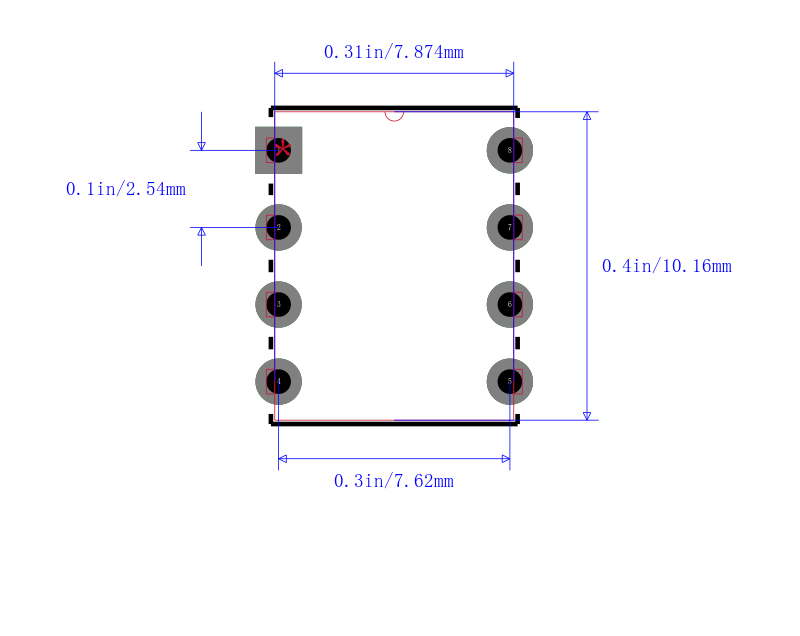

封装 CDIP-8
长度 10.16 mm
宽度 7.87 mm
高度 4.57 mm
封装 CDIP-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM741J TI 德州仪器 | 当前型号 | 当前型号 |
LM741J/883 德州仪器 | 类似代替 | LM741J和LM741J/883的区别 |
UA741IP 德州仪器 | 功能相似 | LM741J和UA741IP的区别 |
UA741MJG 德州仪器 | 功能相似 | LM741J和UA741MJG的区别 |
