LMH6572MQ/NOPB

具有三路 2:1 高速多路复用器的 350MHz 高速运算放大器 16-SSOP -40 to 85

The LMH 6572 is a high performance analog multiplexer optimized for professional grade video and other high fidelity, high bandwidth analog applications. The LMH6572 provides a 290MHz bandwidth at 2 VPP output signal levels. The 140 MHz of .1 dB bandwidth and a 1500 V/µs slew rate make this part suitable for High Definition Television HDTV and High Resolution Multimedia Video applications.

The LMH6572 supports composite video applications with its 0.02% and 0.02° differential gain and phase errors for NTSC and PAL video signals while driving a single, back terminated 75Ω load. The LM6572 can deliver 80 mA linear output current for driving multiple video load applications.

The LMH6572 has an internal gain of 2 V/V +6 dBv for driving back terminated transmission lines at a net gain of 1 V/V 0 dBv.

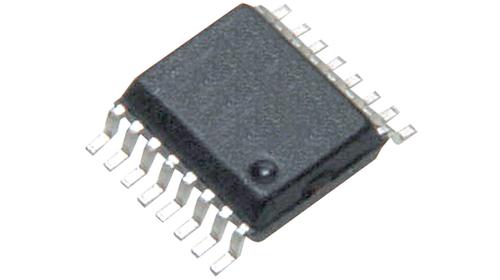

The LMH6572 is available in the SSOP package.
