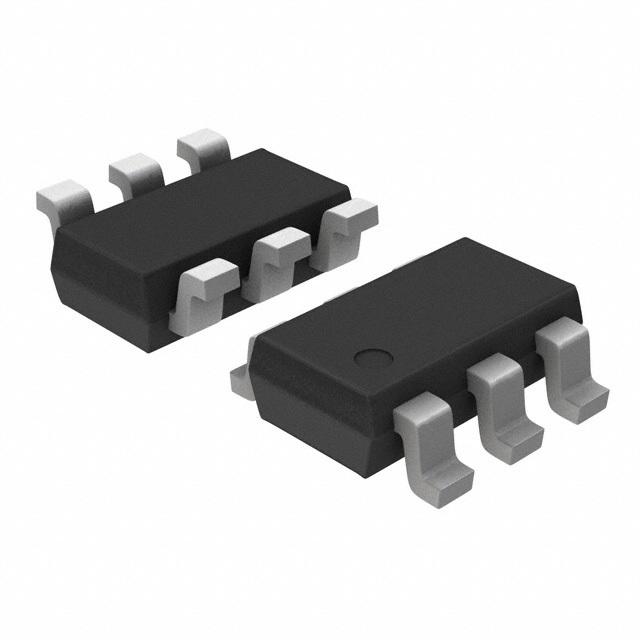

-2V 至 76V、950kHz 电流感应放大器 6-SOT-23-THIN -40 to 125
电流检测 放大器 1 电路 - TSOT-23-6
得捷:
IC CURR SENSE 1 CIRCUIT TSOT23-6
立创商城:
LMP8640HVMK F/NOPB
德州仪器TI:
-2 to 76V, 950kHz current sense amplifier
贸泽:
Current Sense Amplifiers LMP8640HV-T EVAL BOARD
艾睿:
This current sense amplifier LMP8640HVMK-F/NOPB differential amplifier from Texas Instruments will amplify an audio signal in two channels. This part has a temperature range of -40 °C to 125 °C. It has a single channel per chip. This device uses a single power supply.
安富利:
SP Amp Current Sense Amp Single 12V 6-Pin TSOT T/R
Verical:
SP Amp Current Sense Amp Single 12V 6-Pin TSOT-23 T/R
供电电流 2.3 mA
电路数 1
通道数 1
共模抑制比 60 dB
增益频宽积 450 kHz
输入补偿电压 900 µV
输入偏置电流 13 µA
工作温度Max 125 ℃
工作温度Min 40 ℃
增益带宽 450 kHz
共模抑制比Min 60dB ~ 75dB
电源电压Max 12 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMP8640HVMK-F/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMP8640MKE-F/NOPB 德州仪器 | 类似代替 | LMP8640HVMK-F/NOPB和LMP8640MKE-F/NOPB的区别 |
LMP8640HVMKE-F/NOPB 德州仪器 | 类似代替 | LMP8640HVMK-F/NOPB和LMP8640HVMKE-F/NOPB的区别 |
LMP8640MKE-H/NOPB 德州仪器 | 类似代替 | LMP8640HVMK-F/NOPB和LMP8640MKE-H/NOPB的区别 |
