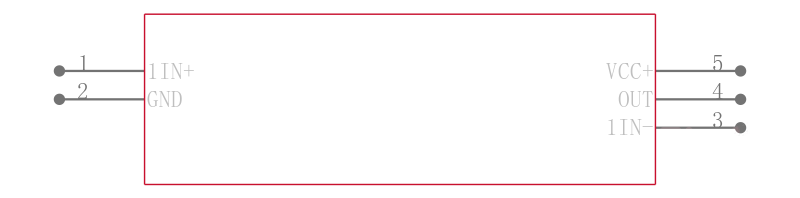

LMV321IDCKRG4

低电压轨到轨输出运算放大器 LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS

DESCRIPON

The LMV358-N/LMV324-N are low voltage 2.7V to 5.5V versions of the dual and quad commodity op amps LM358/LM324 5V to 30V. The LMV321-N is the single channel version. The LMV321-N/LMV358-N/LMV324-N are the most cost effective solutions for applications where low voltage operation, space efficiency, and low price are important. They offer specifications that meet or exceed the familiar LM358/LM324. The LMV321-N/LMV358-N/LMV324-N have rail-to-rail output swing capability and the input common-mode voltage range includes ground. They all exhibit excellent speed to power ratio, achieving 1 MHz of bandwidth and 1 V/µs slew rate with low supply current.

FEATURES

• For V+ = 5V and V− = 0V, unless otherwise specified

• LMV321-N, LMV358-N, and LMV324-N are

available in Automotive AEC-Q100 Grade 1 & 3

versions

• Guaranteed 2.7V and 5V performance

• No crossover distortion

• Industrial temperature range −40°C to +125°C

• Gain-bandwidth product 1 MHz

• Low supply current

• LMV321-N 130 μA

• LMV358-N 210 μA

• LMV324-N 410 μA

• Rail-to-rail output swing @ 10 kΩ V+ − 10 mV & V− \+ 65 mV

• VCM Range −0.2V to V+ − 0.8V

APPLICATIONS

• Active filters

• General purpose low voltage applications

• General purpose portable devices
