双路运算放大器 Dual Operational Amplifier
DESCRIPON
The LM1458 and the LM1558 are general purpose dual operational amplifiers. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. The LM1458 is identical to the LM1558 except that the LM1458 has its specifications guaranteed over the temperature range from 0°C to +70°C instead of −55°C to +125°C.
FEATURES
• No Frequency Compensation Required
• Low-Power Consumption
• Short-Circuit Protection
• 8-Lead TO-99 and 8-Lead PDIP
• Wide Common-Mode and Differential Voltage Ranges
• No Latch Up When Input Common Mode Range is Exceeded
输出电流 45.0 mA
供电电流 3 mA
电路数 2
通道数 2
输入补偿漂移 0.00 V/K
转换速率 500 mV/μs
增益频宽积 1 MHz
输入补偿电压 1 mV
输入偏置电流 200 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 1 MHz
共模抑制比Min 70 dB
安装方式 Surface Mount

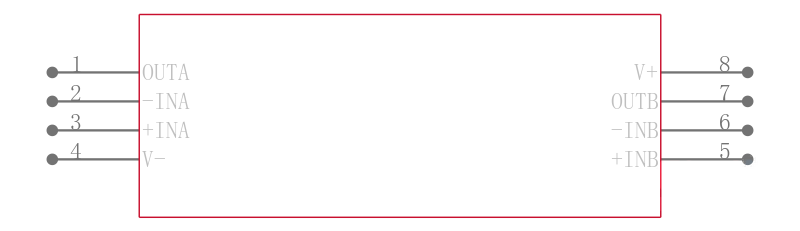

引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1458MX TI 德州仪器 | 当前型号 | 当前型号 |
LM1458MX/NOPB 德州仪器 | 完全替代 | LM1458MX和LM1458MX/NOPB的区别 |
LM1458M 德州仪器 | 完全替代 | LM1458MX和LM1458M的区别 |
MC1458DR 德州仪器 | 类似代替 | LM1458MX和MC1458DR的区别 |
