LATTICE SEMICONDUCTOR LPTM10-12107-DEV-EVN 开发套件, 平台管理器

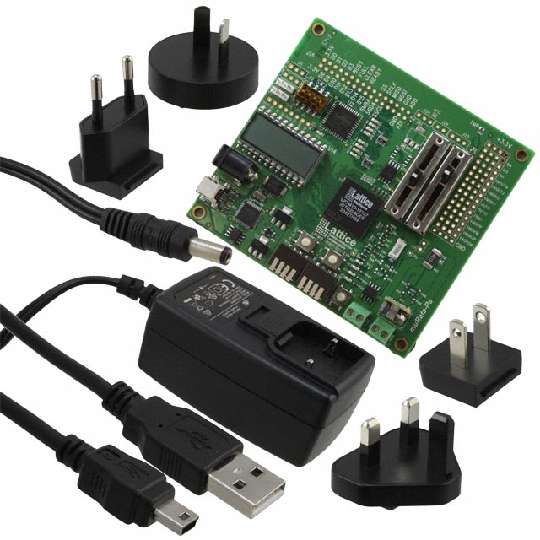

The is a development kit for evaluating and designing with LPTM10-12107 platform manager device. The platform manager LPTM10-12107 device is at the heart of the development kit. This device integrates both analog functions and digital functions, necessary for advanced board and system level power control. It is a feature rich device that allows for full power control and reset generation or platform management. Using the preloaded board digital management design provided with the development kit, we can test within minutes power management functions such as power supply hot swap control, redundant supply selection and payload power management. Digital management support functions include reset distribution, system interfacing, power-on configuration and fault monitoring and logging. The kit also demonstrates enhanced power management features such as power supply closed loop trimming and margining. Power for the board comes from a 12VDC wall plug supply.
- .
- Preloaded power management demo
- .
- 35mm slide pots to emulate supply rail variations
- .
- Pads for user I/O, LED, and switches
- .
- JTAG and I2C interface headers
- .
- USB programming support on board
- .
- 4Mbit SPI flash memory for logging data and faults
- .
- Adjustable potentiometers for user faults or demos
- .
- LDO to demo sequencing and trim functions
- .
- LCD display
- .
- 2x16 expansion header for I2C, SPI and general purpose data bus, I/O
Use static safe handling practices when using this development kit. Store the board in the supplied ESD safe bag. Handle all cables and interconnects in a static safe environment.
