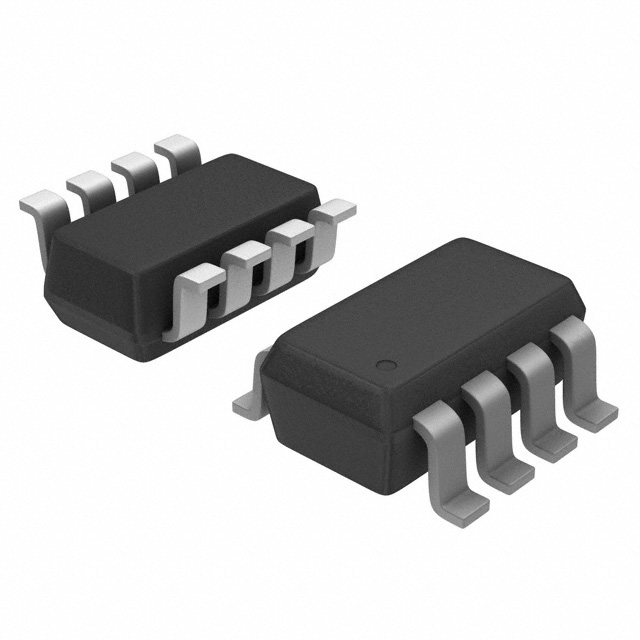

IC OPAMP PGA 13MHz RRO TSOT23-8
This programmable gain amplifier differential amplifier from will amplify an audio signal in two channels. It has a rail to rail output. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±5.25 V. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has a single channel per chip. This device uses one or two power supplies.
输出电流 35 mA
供电电流 3.5 mA
电路数 1
通道数 1
转换速率 16.0 V/μs
增益频宽积 13 MHz
输入补偿电压 1.5 mV
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 13 MHz
共模抑制比Min <60 dB
电源电压Max 10V ~ 15V
安装方式 Surface Mount
引脚数 8
封装 TSOT-23-8
高度 0.9 mm
封装 TSOT-23-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6910-2CTS8#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6910-2CTS8#TRMPBF 凌力尔特 | 类似代替 | LTC6910-2CTS8#TRPBF和LTC6910-2CTS8#TRMPBF的区别 |
