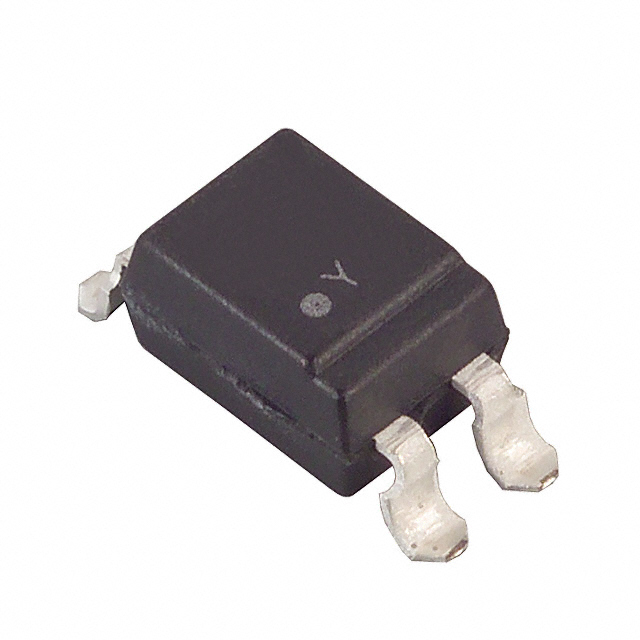

LTV-817S-TA

LTV-817 系列 1 通道 5 kV 绝缘 1.2 V 光电耦合器 - SMT DIP-4

High Density Mounting Type Photocoupler

Features

Current transfer ratio CTR : MIN. 50% at IF=5mA, VCE=5V

High input-output isolation voltage: VISO : 5,000Vrms

Compact dual-in-line package

  LTV-817 : 1-channel type

  LTV-827 : 2-channel type

  LTV-847 : 4-channel type

UL approved No. E113898

TUV approved No. R9653630

CSA approved No. CA91533-1

FIMKO approved No. 202634

NEMKO approved No. P98101945

DEMKO approved No. 307857

SEMKO approved No. 9832157/01-03

VDE approved No. 094722

Options available :

  -Leads with 0.4"10.16mmspacing M Type

  -Leads bends for surface mountingS Type

  -Tape and Reel of Type I for SMDAdd"-TA"Suffix

  -Tape and Reel of Type II for SMDAdd"-TA1"Suffix

  -VDE 0884 approvals Add"-V"Suffix

Applications

1\. Computer terminals.

2\. System appliances, measuring instruments.

3\. Registers, copiers, automatic vending machines.

4\. Electric home appliances such as fan heaters, etc.

5\. Signal transmission between circuits of different potentials and impedances.
