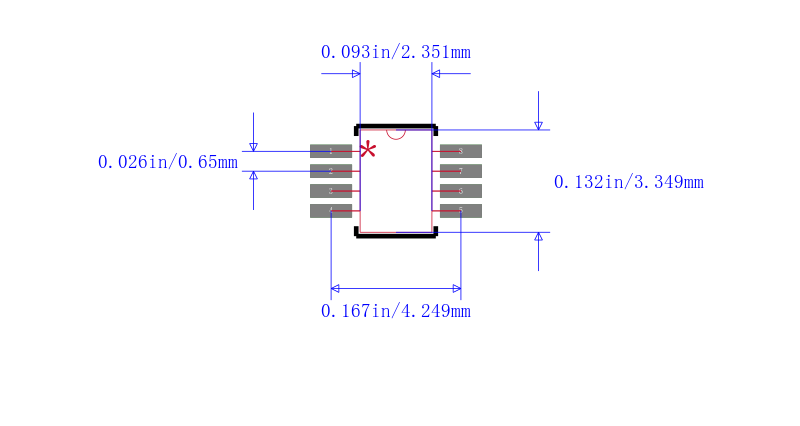

运算放大器 - 运放 LT1490 - Dual and Quad Micropower Rail-to-Rail Input and Output Op Amps
DESCRIPTION
The dual LT®1490 and quad LT1491 op amps operate on all single and split supplies with a total voltage of 2V to 44V drawing only 40µA of quiescent current per amplifier. These amplifiers are reverse supply protected; they draw no current for reverse supply up to 18V. The input range of the LT1490/LT1491 includes both supplies and the output swings to both supplies. Unlike most micropower op amps, the LT1490/LT1491 can drive heavy loads; their rail-to-rail outputs drive 20mA. The LT1490/LT1491 are unity-gain stable and drive all capacitive loads up to 10,000pF when optional 0.22µF and 150Ω compensation is used.
FEATURES
■ Rail-to-Rail Input and Output
■ Single Supply Input Range: –0.4V to 44V
■ Micropower: 50µA/Amplifier Max
■ Specified on 3V, 5V and ±15V Supplies
■ High Output Current: 20mA
■ Output Drives 10,000pF with Output Compensation
■ Reverse Battery Protection to 18V
■ No Supply Sequencing Problems
■ High Voltage Gain: 1500V/mV
■ High CMRR: 98dB
■ No Phase Reversal
■ Gain Bandwidth Product: 200kHz
APPLICATIONS
■ Battery- or Solar-Powered Systems
Portable Instrumentation
Sensor Conditioning
■ Supply Current Sensing
■ Battery Monitoring
■ Micropower Active Filters
■ 4mA to 20mA Transmitters
