LTC6431BIUF-20#TRPBF

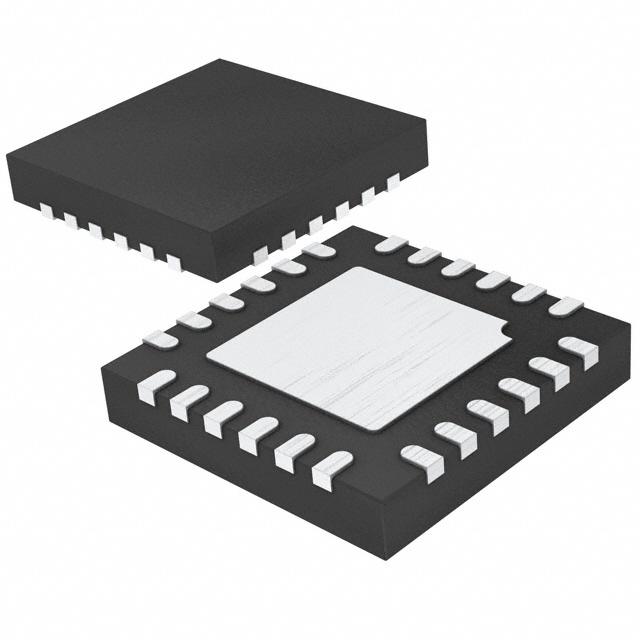

LINEAR TECHNOLOGY  LTC6431BIUF-20#TRPBF  芯片, 中频放大器, 20.8DB, 1.4GHZ, 5V, QFN-24

The is a Gain Block IF Amplifier exhibiting excellent linearity at frequencies beyond 1000MHz and with low associated output noise. The unique combination of linearity, low noise and low power dissipation make this an ideal candidate for many signal-chain applications. The LTC6431-20 is easy to use, requiring a minimum of external components. It is internally input/output matched to 50R and it draws only 93mA from a single 5V supply. On-chip bias and temperature compensation maintain performance over environmental changes. The LTC6431-20 uses a high performance SiGe BiCMOS process for excellent repeatability compared with similar GaAs amplifiers.

.

50R Matched 20 to 1400MHz

.

46.2dBm OIP3 at 240MHz into 50ohm

.

0.6nV/√Hz Total input noise

.

S11 <-10dB up to 2.0GHz

.

S22 <-10dB up to 1.4GHz

.

>2Vp.p Linear output swing

.

22dBm P1dB

.

50R Single-ended input/output

.

Insensitive to Vcc variation

.

A-grade 100% 0IP3 tested at 240MHz

.

Input/output internally matched to 50ohm
