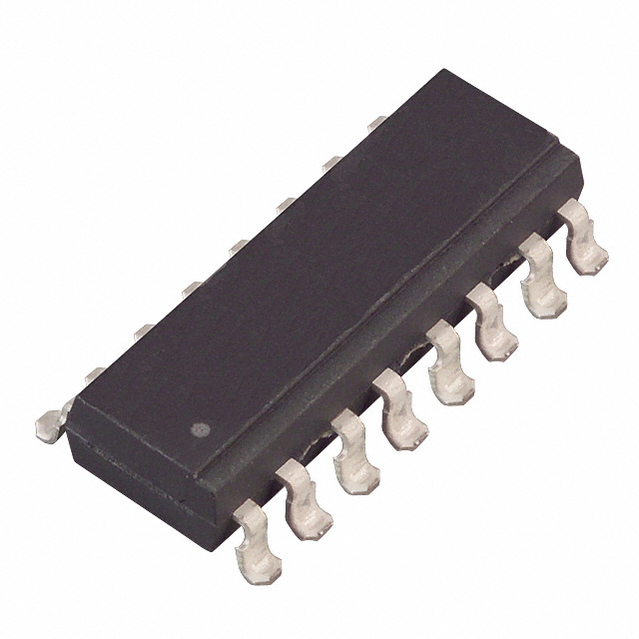

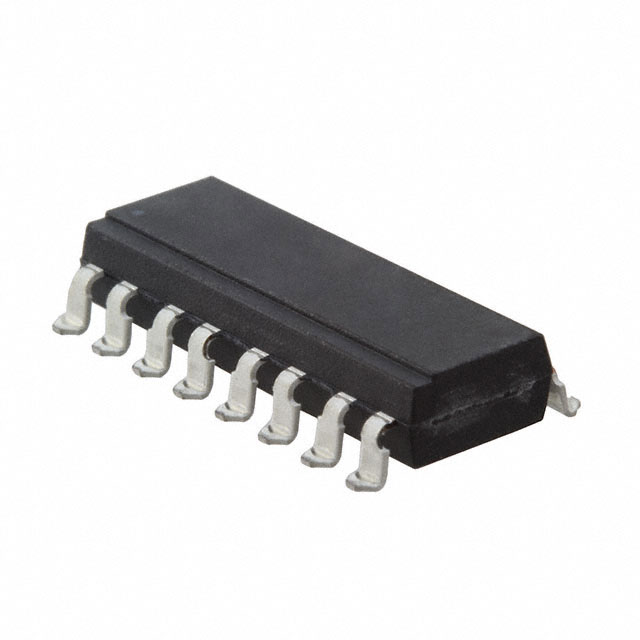

LTV-845S

Optocoupler DC-IN 4CH Darlington DC-OUT 16Pin PDIP SMD

FEATURES

* High current transfer ratio

   CTR : MIN. 600% at IF = 1mA, VCE = 2V

* High input-output isolation voltage

   Viso = 5,000Vrms

* Response time

   tr : TYP. 60µs at VCE = 2V, IC = 10mA, RL = 100Ω

* Dual-in-line package :

   LTV-815 : 1-channel type

   LTV-825 : 2-channel type

   LTV-845 : 4-channel type

* Wide lead spacing package :

   LTV-815M : 1-channel type

   LTV-825M : 2-channel type

   LTV-845M : 4-channel type

* Surface mounting package :

   LTV-815S : 1-channel type

   LTV-825S : 2-channel type

   : 4-channel type

* Tape and reel packaging :

   LTV-815S-TA1, LTV-825S-TA1

* UL approved No. E113898

* TUV approved No. R9653630

* CSA approved No. CA91533-1

* FIMKO approved No. 193422-01

* NEMKO approved No. P96103013

* DEMKO approved No. 303986

* SEMKO approved No. 9646047 / 01-30

* VDE approved No. 094722
