TEXAS INSTRUMENTS LMC6044IM Operational Amplifier, Quad, 4 Amplifier, 100kHz, 0.02V/µs, 4.5V to 15.5V, SOIC, 14Pins
DESCRIPON
Ultra-low power consumption and low input-leakage current are the hallmarks of the LMC6044. Providing input currents of only 2 fA typical, the LMC6044 can operate from a single supply, has output swing extending to each supply rail, and an input voltage range that includes ground.
FEATURES
• Low Supply Current: 10 μA/Amp Typ
• Operates from 4.5V to 15.5V Single Supply
• Ultra Low Input Current: 2 fA Typ
• Rail-to-Rail Output Swing
• Input Common-Mode Range Includes Ground
电源电压DC 5.00 V
输出电流 22mA @5V
供电电流 52 µA
电路数 4
通道数 4
输入补偿漂移 1.30 µV/K
带宽 100 kHz
转换速率 20.0 mV/μs
增益频宽积 100 kHz
输入补偿电压 1 mV
输入偏置电流 0.002 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.1 MHz
共模抑制比Min 62 dB
电源电压 4.5V ~ 15.5V
安装方式 Surface Mount
引脚数 14

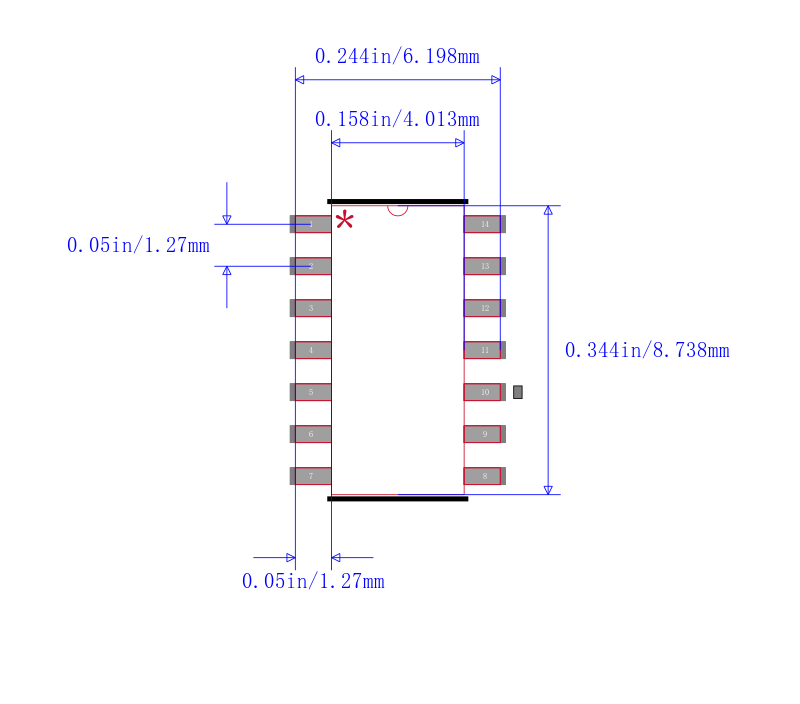

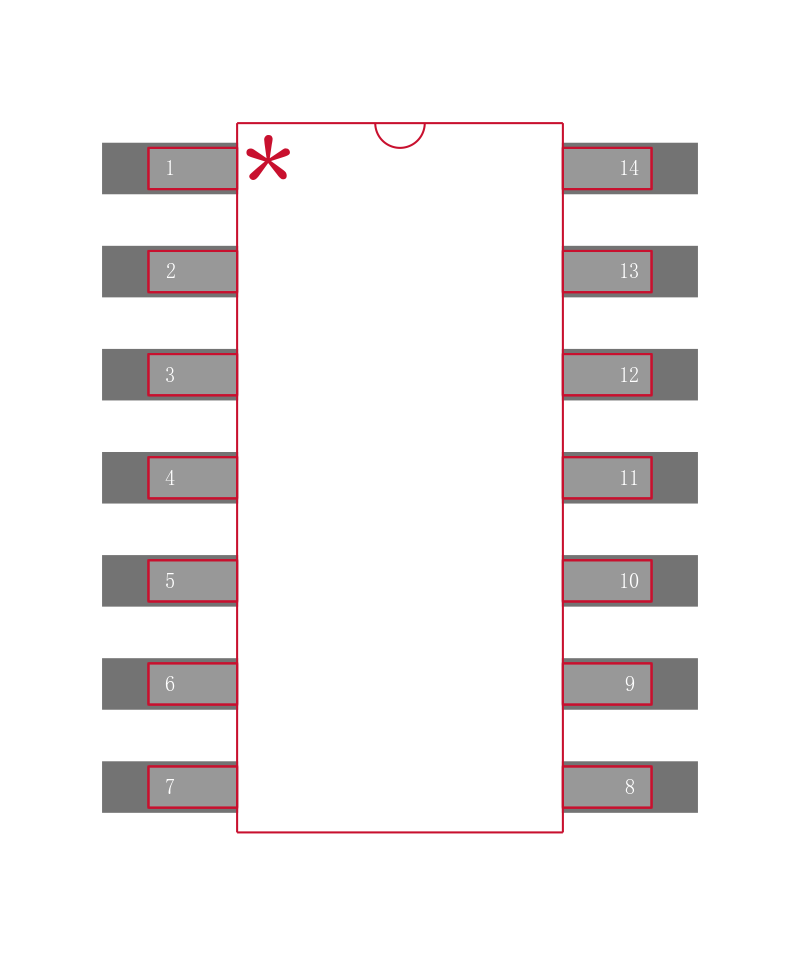

封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMC6044IM TI 德州仪器 | 当前型号 | 当前型号 |
LMC6044IM/NOPB 德州仪器 | 类似代替 | LMC6044IM和LMC6044IM/NOPB的区别 |
