IC OPAMP GP 60MHz RRO 8SO
DESCRIPTION
The LT® 6220/LT6221/LT6222 are single/dual/quad, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT6220/LT6221/LT6222 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.
FEATURES
■ Gain Bandwidth Product: 60MHz
■ Input Common Mode Range Includes Both Rails
■ Output Swings Rail-to-Rail
■ Low Quiescent Current: 1mA Max
■ Input Offset Voltage: 350µV Max
■ Input Bias Current: 150nA Max
■ Wide Supply Range: 2.2V to 12.6V
■ Large Output Current: 50mA Typ
■ Low Voltage Noise: 10nV√HzTyp
■ Slew Rate: 20V/µs Typ
■ Common Mode Rejection: 102dB Typ
■ Power Supply Rejection: 105dB Typ
■ Open-Loop Gain: 100V/mV Typ
■ Operating Temperature Range: – 40°C to 85°C

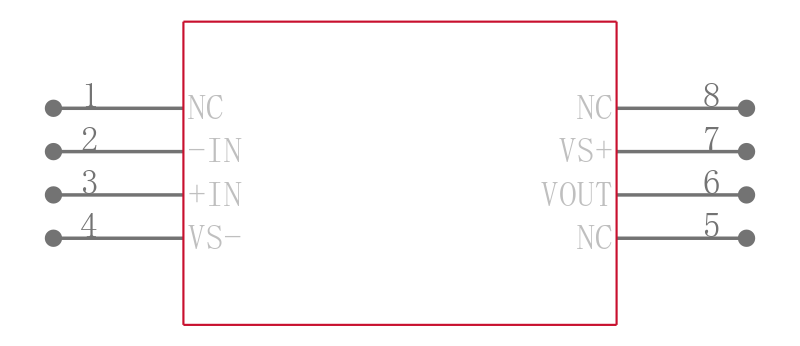

■ Single in the 8-Pin SO and 5-Pin Low Profile1mm ThinSOTTM Packages
■ Dual in the 8-Pin SO and 3mm x 3mm DFN Packages
■ Quad in the 16-Pin SSOP Package
APPLICATIONS
■ Low Voltage, High Frequency Signal Processing
■ Driving A/D Converters
■ Rail-to-Rail Buffer Amplifiers
■ Active Filters
■ Video Amplifiers
■ Fast Current Sensing Amplifiers
