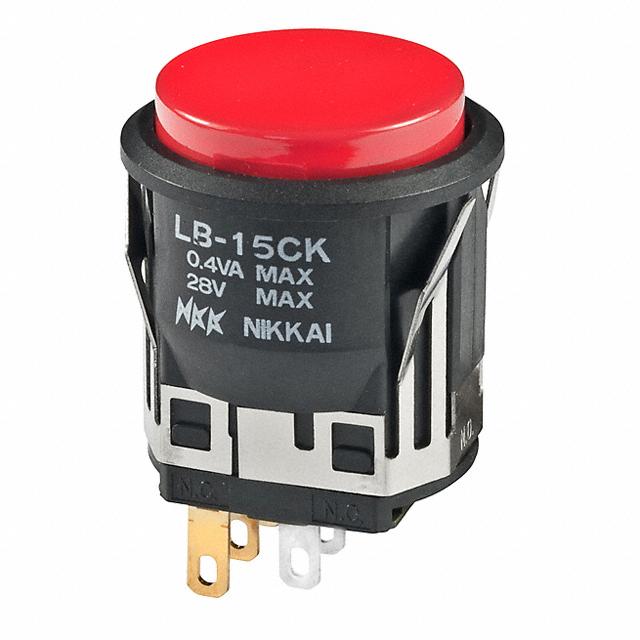

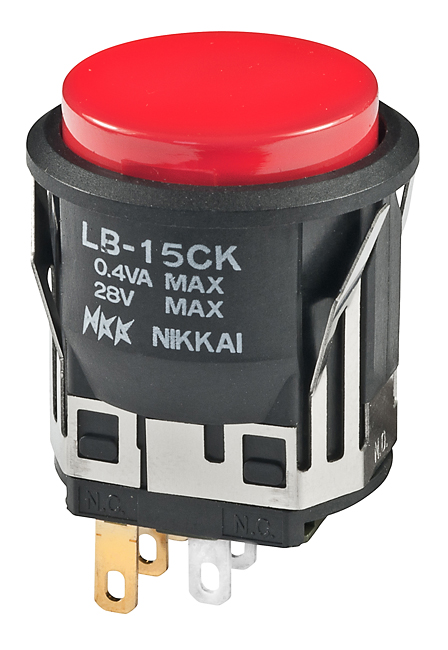

Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
按钮 SPDT 标准 面板安装，卡入式
得捷:
SWITCH PUSH SPDT 0.4VA 28V
立创商城:
LB15CKG01-C
艾睿:
Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
Allied Electronics:
STD SIZE PUSHBUTTON/SNAP-IN
Chip1Stop:
Switch Push Button ON ON SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount
Powell:
STD SIZE PUSHBUTTON/ILLUMINATED/SNAP-IN
额定电压DC 28 V
接触器类型 Button
额定电压AC 28 V
额定电流 0.0142 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 28 VAC
接触电阻Max 100 mΩ
安装方式 Solder Lug
封装 -
长度 23.7 mm
宽度 23.7 mm
高度 34 mm
封装 -
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
