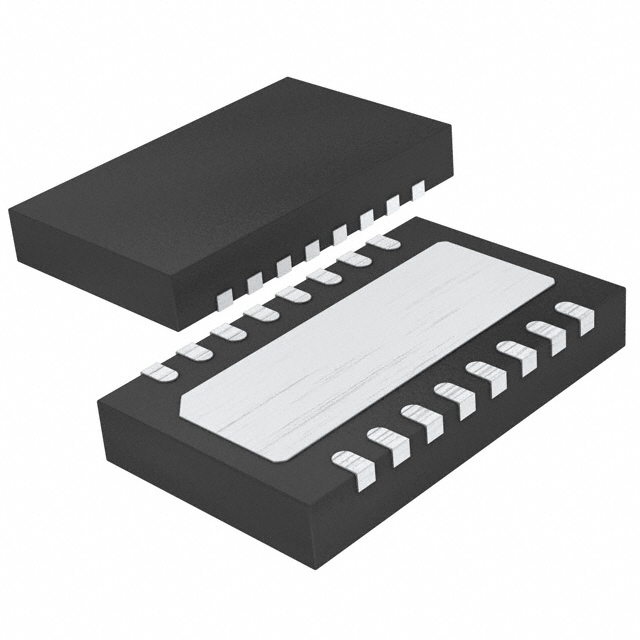

LTC6079IDHC

IC OPAMP GP 750kHz RRO 16DFN

DESCRIPTION

The LTC®6078/LTC6079 are dual/quad, low offset, low noise operational amplifiers with low power consumption and rail-to-rail input/output swing.

Input offset voltage is trimmed to less than 25µV and the CMOS inputs draw less than 50pA of bias current. The low offset drift, excellent CMRR, and high voltage gain make it a good choice for precision signal conditioning. Each amplifi er draws only 54µA current on a 3V supply. The

micropower, rail-to-rail operation of the LTC6078/LTC6079 is well suited for portable instruments and single supply applications.

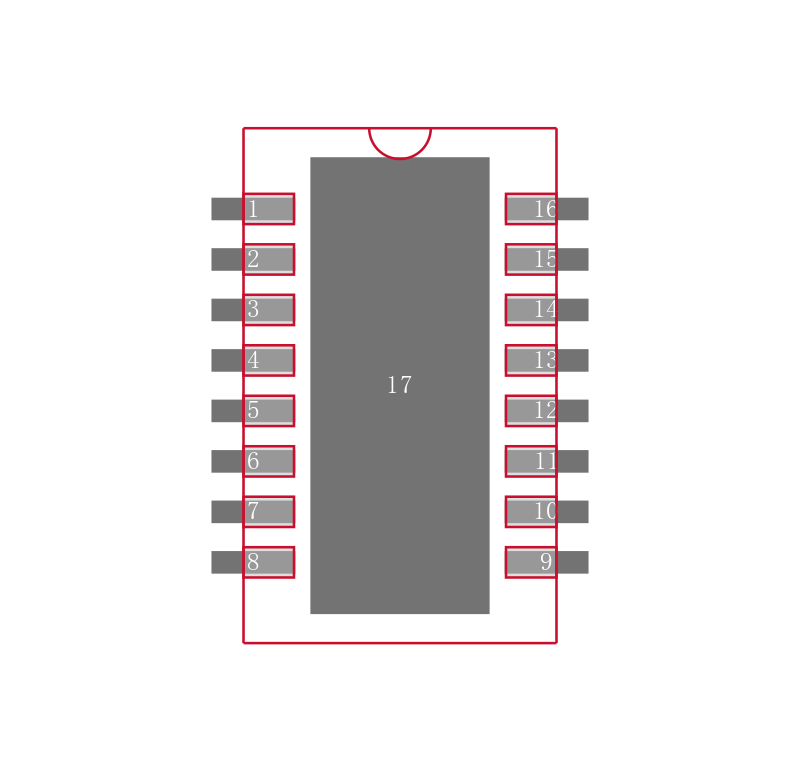

The LTC6078/LTC6079 are specified on power supply voltages of 3V and 5V from –40 to 125°C. The dual amplifier LTC6078 is available in 8-lead MSOP and 10-lead DFN packages. The quad amplifier LTC6079 is available in 16-lead SSOP and DFN packages.

FEATURES

■  Maximum Offset Voltage of 25µV 25°C

■  Maximum Offset Drift of 0.7µV/°C

■  Maximum Input Bias: 1pA 25°C 50pA ≤85°C

■ Micropower: 54µA per Amp

■ 95dB CMRR Min

■ 100dB PSRR Min

■ Input Noise Voltage Density: 16nV/√Hz

■ Rail-to-Rail Inputs and Outputs

■ 2.7V to 5.5V Operation Voltage

■ LTC6078 Available in 8-Lead MSOP and 10-Lead DFN Packages; LTC6079 Available in 16-Lead SSOP and DFN Packages

APPLICATIONS

■ Photodiode Amplifier

■ High Impedance Sensor Amplifier

■ Microvolt Accuracy Threshold Detection

■ Instrumentation Amplifiers

■ Battery Powered Applications
