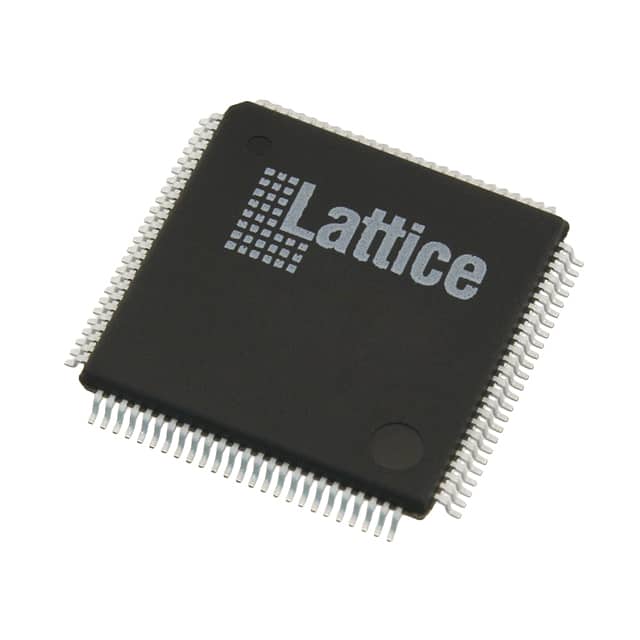

LATTICE SEMICONDUCTOR LCMXO2-1200HC-4TG100I 可编程逻辑芯片, PLD, 1280查找表, MACHXO2, 100TQFP
The is an ultra low power instant-on non-volatile PLD with densities of 1280 Look-Up Tables LUTs. In addition to LUT-based, low-cost programmable logic these devices feature Embedded Block RAM EBR, Distributed RAM, User Flash Memory UFM, Phase Locked Loops PLLs, pre-engineered source synchronous I/O support, advanced configuration support including dual-boot capability and hardened versions of commonly used functions such as SPI controller, I²C controller and timer/counter. It features allow these devices to be used in low cost, high volume consumer and system applications. The MachXO2 devices are designed on a 65nm non-volatile low power process. The device architecture has several features such as programmable low swing differential I/Os and the ability to turn off I/O banks, on-chip PLLs and oscillators dynamically. These features help manage static and dynamic power consumption resulting in low static power for all members of the family.
ESD sensitive device, take proper precaution while handling the device.
频率 269 MHz
电源电压DC 2.38V min
针脚数 100
RAM大小 65536 b
输入/输出数 80 Input
工作温度Max 100 ℃
工作温度Min -40 ℃
电源电压 2.375V ~ 3.465V
电源电压Max 3.465 V
电源电压Min 2.375 V
安装方式 Surface Mount
引脚数 100
封装 TQFP-100
高度 1.4 mm
封装 TQFP-100
工作温度 -40℃ ~ 100℃ TJ
产品生命周期 Active
包装方式 Tray
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LCMXO2-1200HC-4TG100I Lattice Semiconductor 莱迪思 | 当前型号 | 当前型号 |
LCMXO2-1200HC-4TG100IR1 莱迪思 | 完全替代 | LCMXO2-1200HC-4TG100I和LCMXO2-1200HC-4TG100IR1的区别 |
LCMXO2-1200HC-4TG100C 莱迪思 | 类似代替 | LCMXO2-1200HC-4TG100I和LCMXO2-1200HC-4TG100C的区别 |
LCMXO2-1200HC-4TG144IR1 莱迪思 | 类似代替 | LCMXO2-1200HC-4TG100I和LCMXO2-1200HC-4TG144IR1的区别 |
