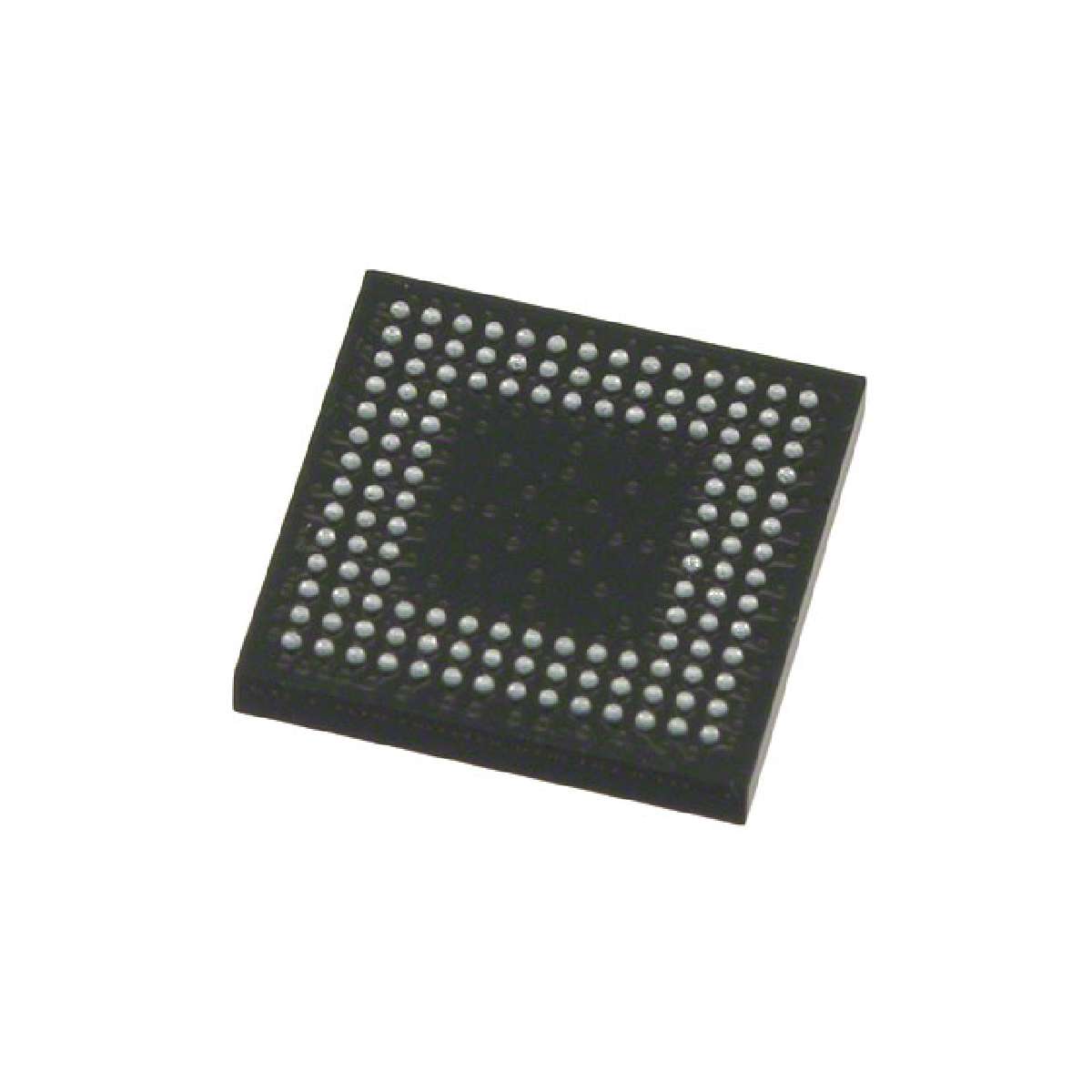

LATTICE SEMICONDUCTOR LCMXO2-1200ZE-1MG132C CPLD, MachXO2 Series, FLASH, 1280, 105 I/O"s, BGA, 132Pins, 104MHz
The MachXO2 series ultra low power instant-ON Non-volatile Complex Programmable Logic Device CPLD has six devices with densities ranging from 256 to 6864 look-up tables LUTs. In addition to LUT-based, low-cost programmable logic these devices feature Embedded Block RAM EBR, Distributed RAM, User Flash Memory UFM, Phase Locked Loops PLLs, pre-engineered source synchronous I/O support, advanced configuration support including dual-boot capability and hardened versions of commonly used functions such as SPI controller, I²C controller and timer/counter. These features allow these devices to be used in low cost, high volume consumer and system applications. The MachXO2 devices are designed on a 65nm non-volatile low power process. The device architecture has several features such as programmable low swing differential I/Os and the ability to turn off I/O banks, on-chip PLLs and oscillators dynamically.
频率 104 MHz
电源电压DC 1.14V min
工作温度Max 85 ℃
工作温度Min 0 ℃
电源电压 1.14V ~ 1.26V
电源电压Max 1.26 V
电源电压Min 1.14 V
安装方式 Surface Mount
引脚数 132
封装 BGA-132
封装 BGA-132
工作温度 0℃ ~ 85℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 Industrial, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LCMXO2-1200ZE-1MG132C Lattice Semiconductor 莱迪思 | 当前型号 | 当前型号 |
LCMXO2-1200ZE-3MG132C 莱迪思 | 完全替代 | LCMXO2-1200ZE-1MG132C和LCMXO2-1200ZE-3MG132C的区别 |
LCMXO2-1200ZE-1MG132CR1 莱迪思 | 完全替代 | LCMXO2-1200ZE-1MG132C和LCMXO2-1200ZE-1MG132CR1的区别 |
LCMXO2-1200ZE-1MG132I 莱迪思 | 类似代替 | LCMXO2-1200ZE-1MG132C和LCMXO2-1200ZE-1MG132I的区别 |
