LATTICE SEMICONDUCTOR LC4128V-75TN144C 可编程逻辑芯片, CPLD, 128宏单元, 3.3V, ISPMACH, 144TQFP
The high performance ispMACH 4000 family from Lattice offers a SuperFAST CPLD solution. The family is a blend of Lattice’s two most popular architectures: the ispLSI® 2000 and ispMACH 4A. Retaining the best of both families, the ispMACH 4000 architecture focuses on significant innovations to combine the highest performance with low power in a flexible CPLD family.
The ispMACH 4000 combines high speed and low power with the flexibility needed for ease of design. With its robust Global Routing Pool and Output Routing Pool, this family delivers excellent First-Time-Fit, timing predictability, routing, pin-out retention and density migration.
频率 333 MHz
电源电压DC 3.00V min
针脚数 144
输入/输出数 96 Input
工作温度Max 90 ℃
工作温度Min 0 ℃
电源电压 3.3 V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 144

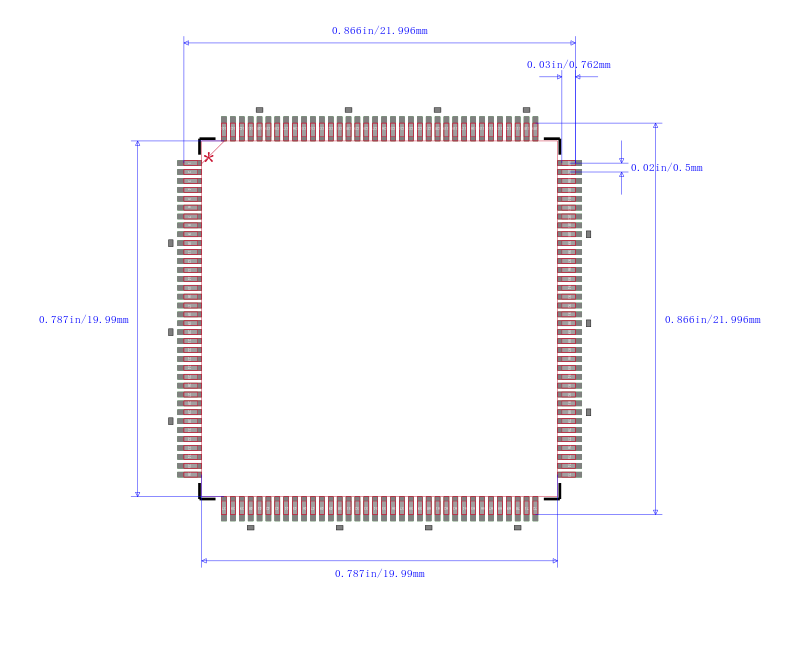

封装 TQFP-144
长度 20 mm
宽度 20 mm
高度 1.4 mm
封装 TQFP-144
工作温度 0℃ ~ 90℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LC4128V-75TN144C Lattice Semiconductor 莱迪思 | 当前型号 | 当前型号 |
LC4128V-75T144I 莱迪思 | 完全替代 | LC4128V-75TN144C和LC4128V-75T144I的区别 |
LC4128V-10TN144I 莱迪思 | 类似代替 | LC4128V-75TN144C和LC4128V-10TN144I的区别 |
LC4128V-75T144C 莱迪思 | 类似代替 | LC4128V-75TN144C和LC4128V-75T144C的区别 |
