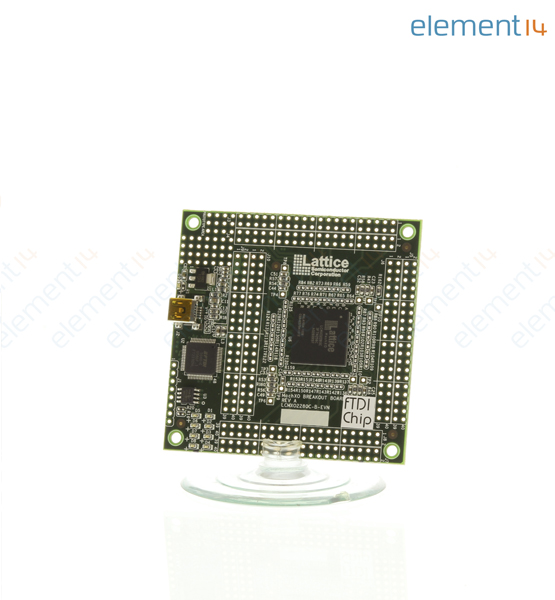

LATTICE SEMICONDUCTOR LCMXO2280C-B-EVN 电路板, Breakout, MACHXO 2280, CPLD, USB 谜你-B连接器, 用于电源和编程, 8个LED灯
The MachXO breakout board evaluation kit is a simple, low cost board that provides convenient access to densely spaced I/Os. It is an easy to use platform for evaluating and designing with the MachXO2280 PLD. The MachXO2280 PLD offers the benefits of increased system integration by providing over 27Kbits of embedded memory, two built in PLLs, high performance LVDS I/Os and a low power sleep mode, all in a single device. Each I/O on the device is connected to 100mil header holes. By adding test probes, jumper wires or pin headers to the board, we can easily evaluate function and performance through the SysIO buffers of the MachXO2. This board is a 3 x 3inch form factor and features a USB mini B connector for power and programming, an LED array and prototype area.
- .
- LCMXO22800C-FTN256C device
- .
- Pre programmed hardware test program
- .
- 1 x 8 expansion header landing for JTAG
- .
- 40 hole prototype area
- .
- USB mini B Connector Program/Power
- .
- JTAG header landing
- .
- Eight LEDs
- .
- 3.3V supply rail
Static electricity can shorten the lifespan of electronic components. Please handle the kit components appropriately.
Store the evaluation board in the packaging provided. Metal USB housing needs to be touch to equalize voltage potential between user and the board.
