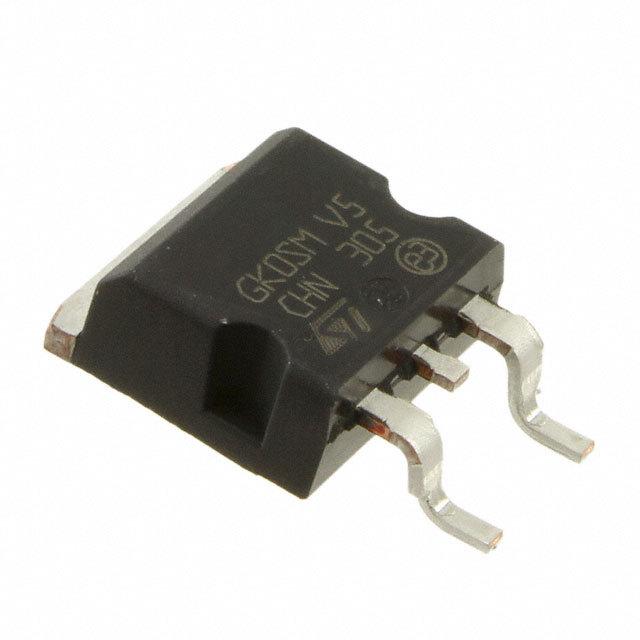

TVS二极管, Transil LDP01-xxAY Series, 单向, 28 V, 56 V, TO-263, 3 引脚
Protect users and systems from electrostatic discharge with this tvs ESD protection device from STMicroelectronics. This ESD diode has a maximum ESD protection device voltage of 30@Air Gap/30@Contact Disc kV. This device"s maximum clamping voltage is 56 V. This ESD diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
工作电压 28 V
击穿电压 33 V
针脚数 3
钳位电压 56 V
测试电流 1 mA
最大反向击穿电压 34.3 V
最小反向击穿电压 31.1 V
击穿电压 31.1 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.4 mm
宽度 9.35 mm
高度 4.6 mm
封装 TO-263-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
