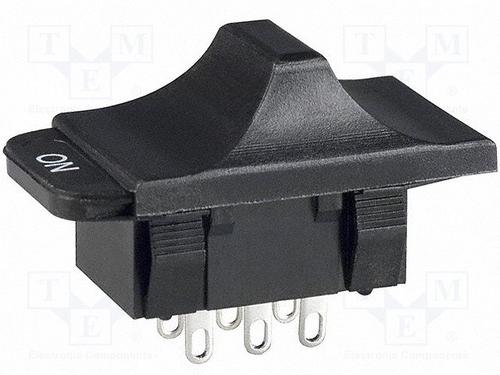

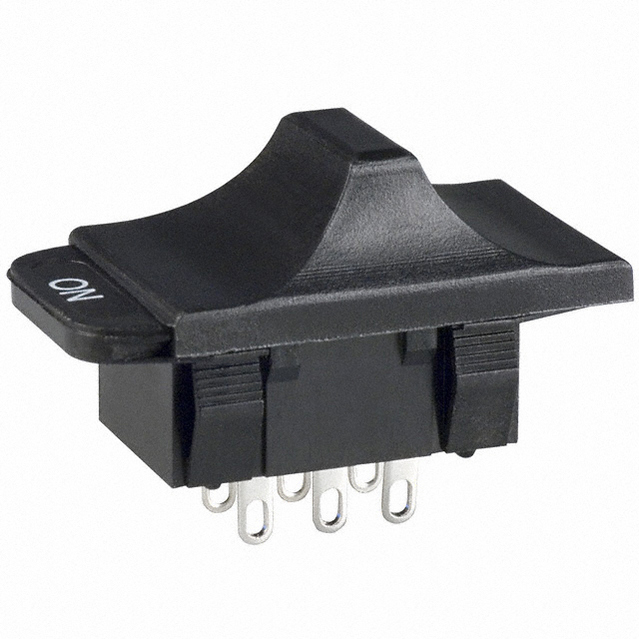

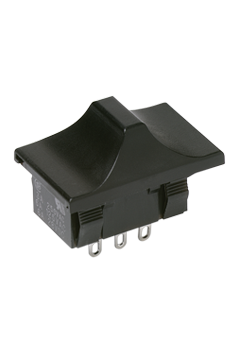

LP22C21T203DQ

Switch: slide; 2Position; DPDT; 3A/250VAC; 6A/28VDC; ON-OFF

The is a Snap-in Slide Switch with DPDT contact configuration and ON-OFF switch operation. It is a LP series miniature switch features contamination resistant extended actuator with positive detent. It is suitable for use with small and outdoor appliances applications.

.

Black cap actuator with detent

.

Snap-in panel with tabs mounting

.

Solder lug with hole terminations

.

On-off housing marking

.

Silver contacts

.

10000 Make-and-break electrical life cycles at full load

.

>10⁹R Minimum insulation resistance

.

1000Vrms Minimum dielectric strength at sea level

.

-30 to +65°C Operating temperature
