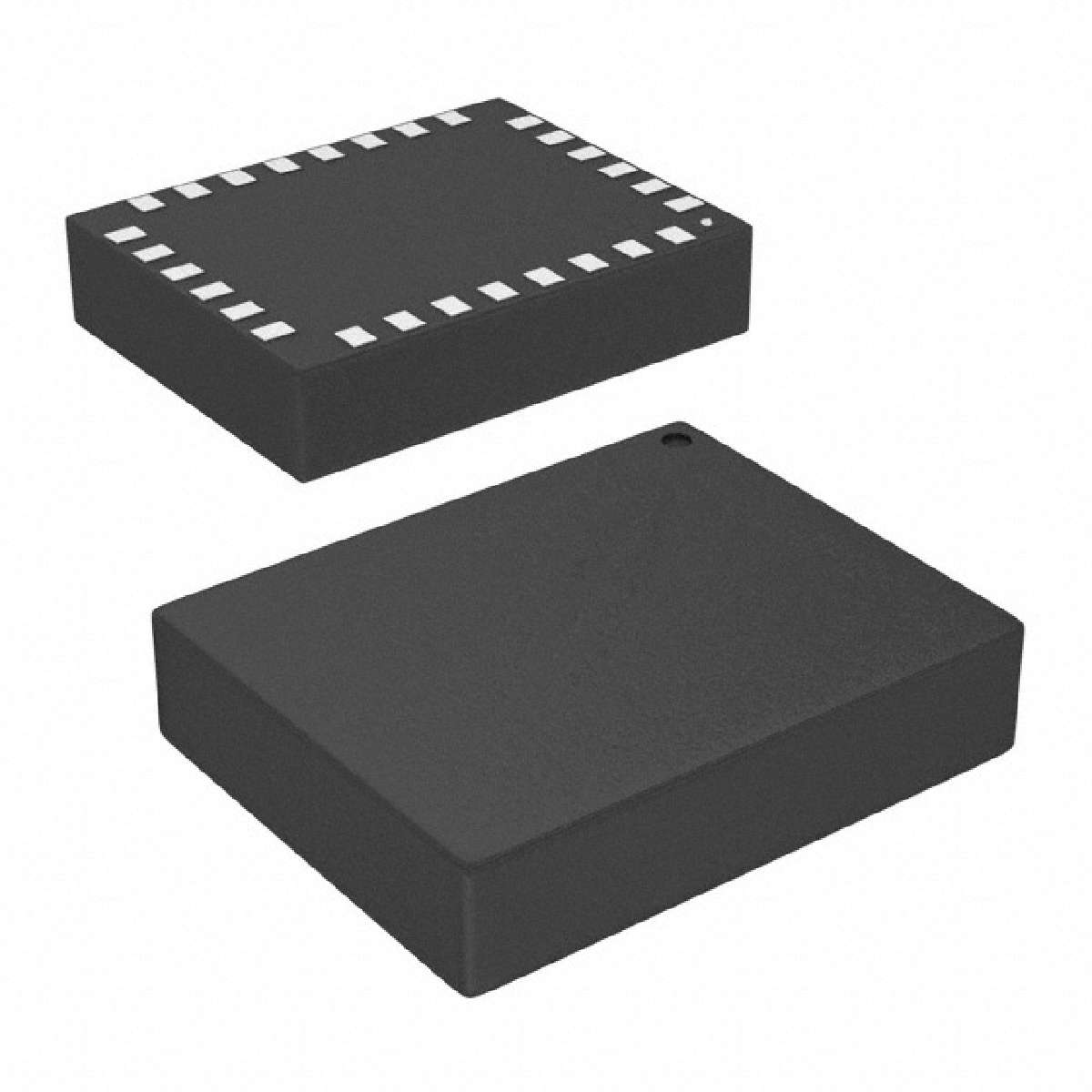

MEMS运动传感器：双轴俯仰和横滚± 500的dps模拟陀螺仪 MEMS motion sensor: dual-axis pitch and roll ±500 dps analog gyroscope
Extract valuable angular information about your device by attaching this gyroscope from STMicroelectronics. This device has a maximum of 3.6 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with mems technology.
贸泽:
Gyroscopes MEMS Motion Sensor 500 Dps Gyro
艾睿:
Extract valuable angular information about your device by attaching this LPR450AL gyroscope from STMicroelectronics. This device has a maximum of 3.6 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with mems technology.
安富利:
Gyroscope Dual 3.6V 28-Pin PLGA Tray
Chip1Stop:
MEMS Motion Sensor 28-Pin PLGA Tray
DeviceMart:
GYRO 500DEG/S 2MV 140HZ 28LGA
电源电压DC 2.70V min
供电电流 6.8 mA
带宽 140 Hz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
引脚数 28
封装 TFLGA-28
长度 4 mm
宽度 5 mm
高度 1 mm
封装 TFLGA-28
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LPR450AL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LPR430ALTR 意法半导体 | 完全替代 | LPR450AL和LPR430ALTR的区别 |
LPR430AL 意法半导体 | 完全替代 | LPR450AL和LPR430AL的区别 |
