MEMS运动传感器：双轴俯仰和偏航± 300 ° / s的模拟陀螺仪 MEMS motion sensor: dual axis pitch and yaw ±300°/s analog gyroscope
This gyroscope from STMicroelectronics provides angular information about a device. This device has a maximum of 3.6 V. This part has a temperature range of -40 °C to 85 °C. This device utilizes mems technology.
贸泽:
Gyroscopes Dual 0.83 mV deg/s LGA-16
艾睿:
MEMS Dual Axis ±300°/s 16-Pin LGA Tray
Chip1Stop:
MEMS Motion Sensor 16-Pin LGA Tray
Verical:
MEMS Gyroscopes Dual Axis ±300°/s 16-Pin LGA Tray
Win Source:
MEMS motion sensor: dual axis pitch and yaw ±300°/s analog gyroscope
DeviceMart:
MEMS motion sensor:dual axis pitch and yaw ±300°/s analog gyroscope
供电电流 6.8 mA
带宽 140 Hz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 VDC
电源电压Min 2.7 VDC
安装方式 Surface Mount
引脚数 16

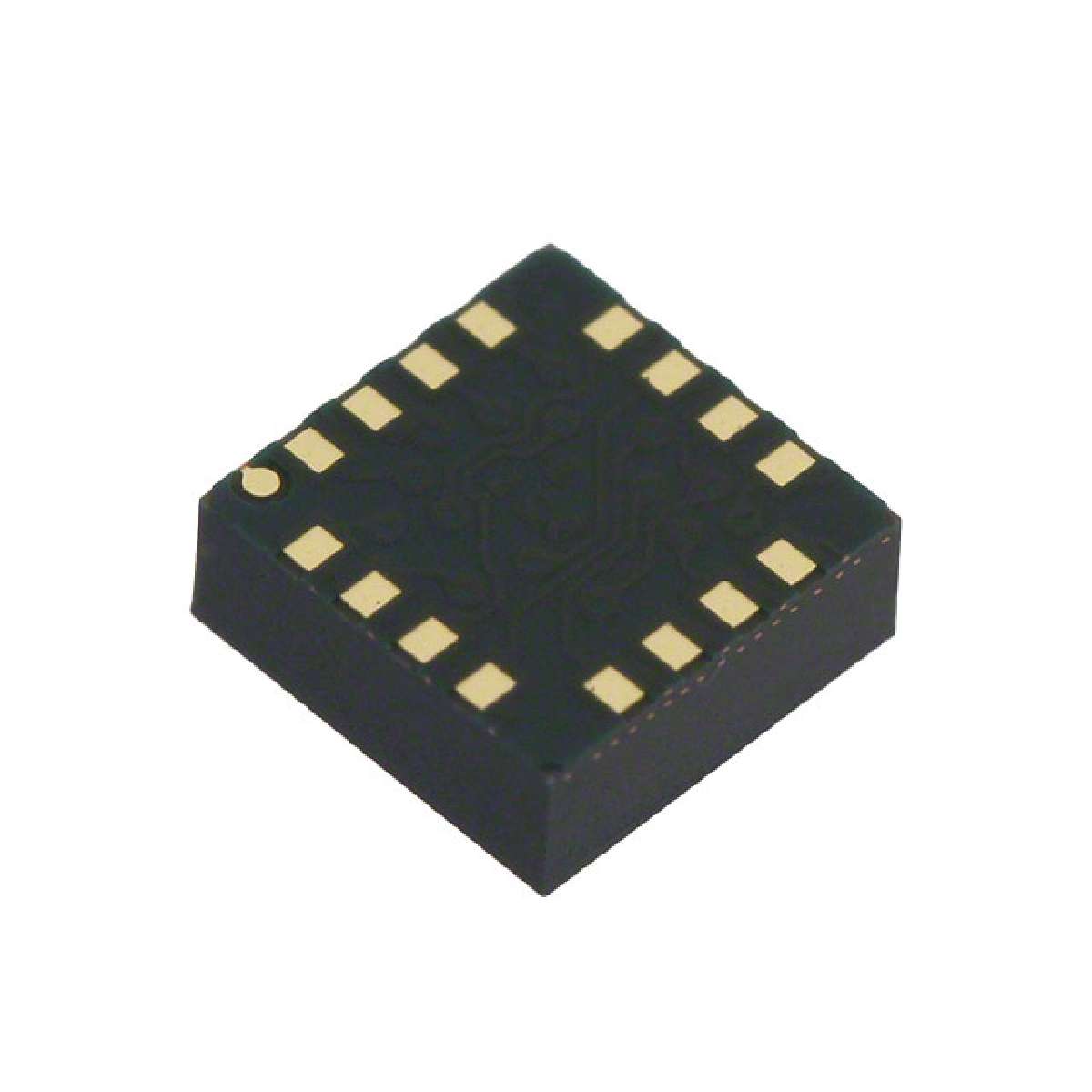

封装 LFLGA-16
长度 5 mm
宽度 5 mm
高度 1.5 mm
封装 LFLGA-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
