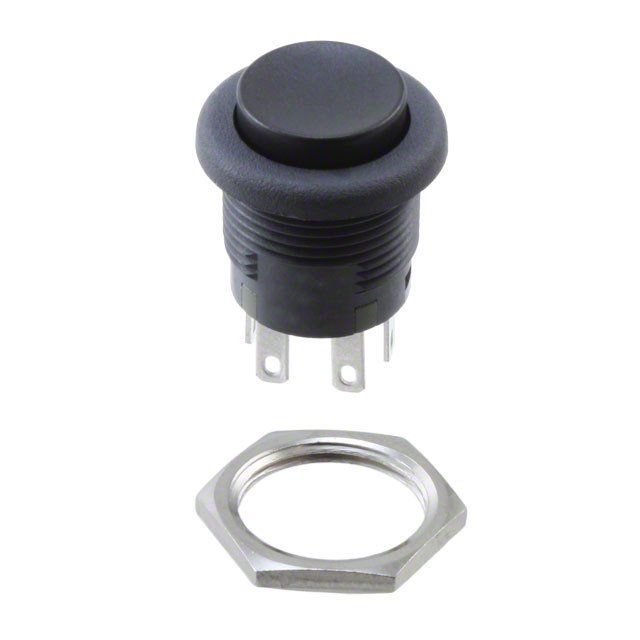

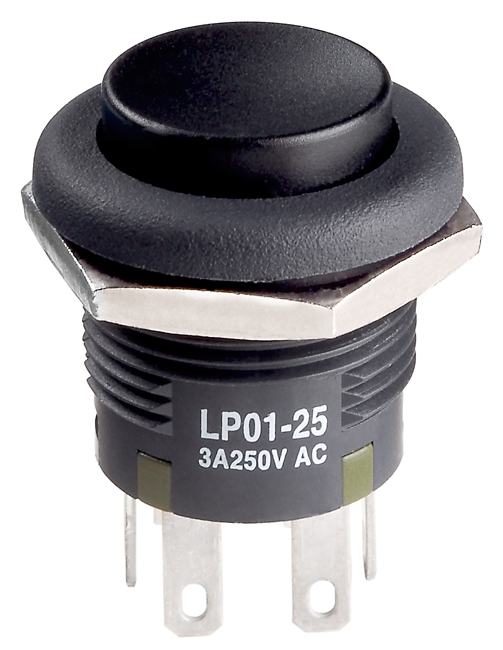

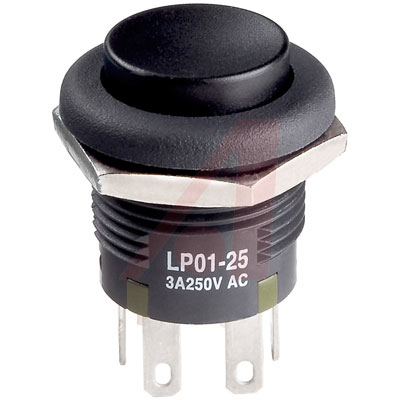

LP0125CCKW01A

NKK SWITCHES  LP0125CCKW01A  按钮开关, 非发光, DPDT, 3A, 黑色

Series LP01 short body pushbuttons meet RoHS directives restricting use of hazardous material and are suitable for lead-free soldering thanks to use of heat resistant resin components.

艾睿:
This classic LP0125CCKW01A push button switch from NKK Switches will do exactly what you need it to do by turning your circuit on and off. It has a DPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has an operating temperature range of -25 °C to 70 °C. The LP0125CCKW01A push switch has a quick connect/solder lug termination style. This product is 20 mm long, 26.8 mm tall and 20 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
Switch, Pushbutton; DPDT On On; 3A 125VAC; 17.2mm snap-in mnt; QC tabs; Black cap

Newark:
# NKK SWITCHES  LP0125CCKW01A  Pushbutton Switch, DPDT, On-On, 250 V, 30 V, 3 A, Quick Connect, Solder

Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
