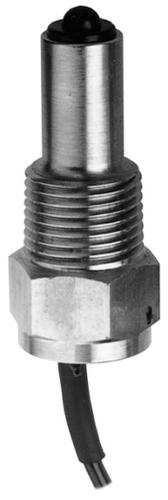

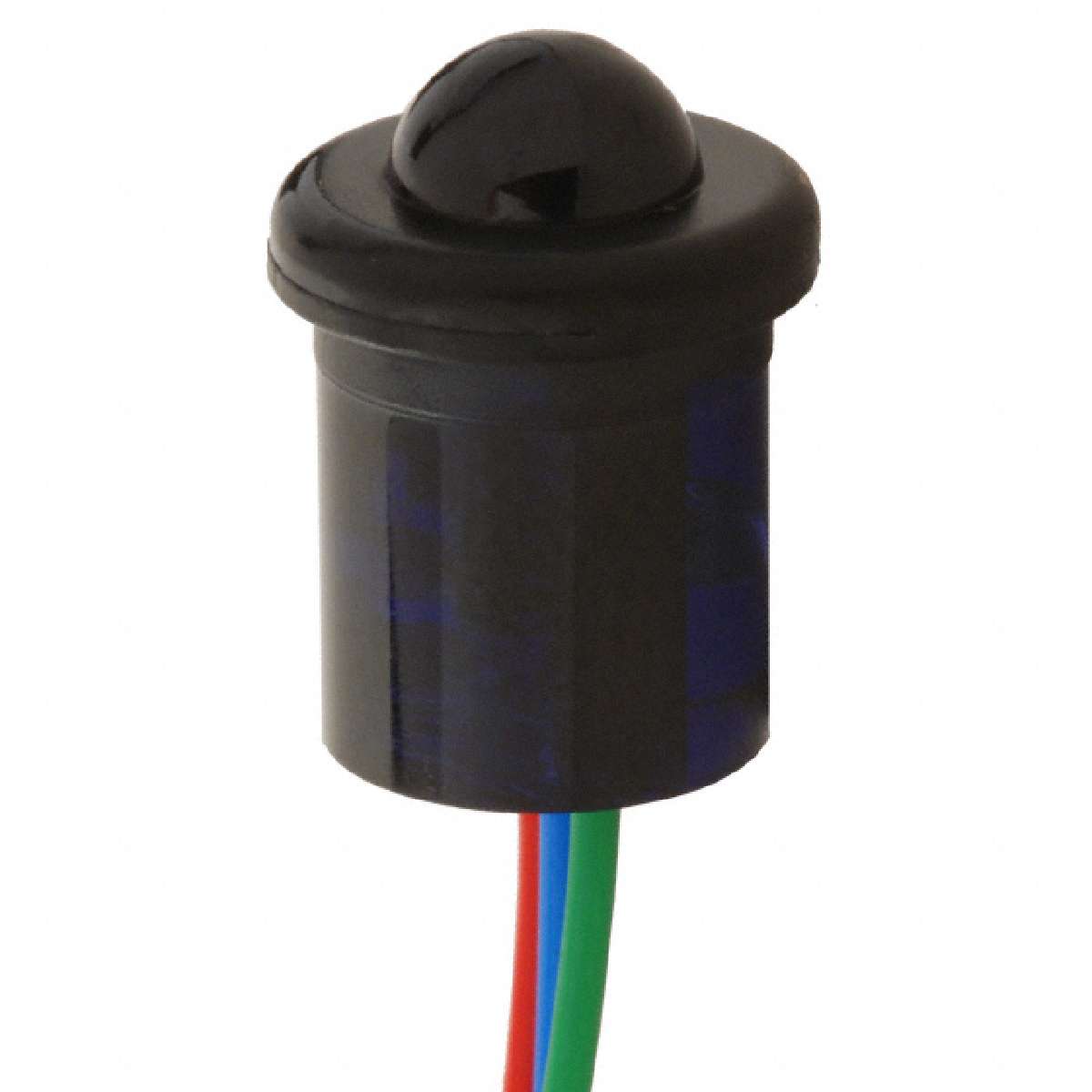

HONEYWELL LLE105100 液位传感器, 按入式
The is an enhanced Liquid Level Sensor incorporates a photo-transistor trigger which provides a digital output that denotes the presence or absence of liquid. This sensor incorporates reverse polarity, over voltage, short-circuit and transient protection.
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
电源电压DC 5V ~ 12V
额定电流 5 mA
输出电流 40 mA
上升时间 50.0 µs
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 5V ~ 12V
电源电压 5.0VDC ~ 12.0VDC
安装方式 Panel
引脚数 3
封装 125
高度 16.12 mm
封装 125
材质 Plastic
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 消费电子产品, 工业, 车用, Industrial, Medical, Consumer Electronics, Automotive, 医用
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8541408000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LLE105100 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
LLE105000 霍尼韦尔 | 类似代替 | LLE105100和LLE105000的区别 |
