HONEYWELL LLE103101 液位传感器, 后部安装
固态液位开关 - 高温
聚砜外壳,与绝大多数工业液体兼容,包括油、汽油和清洁剂。
LED 和 Optoschmitt 输出
用户定义单点开/关开关
滞后 1mm(取决于液体)
### 随附

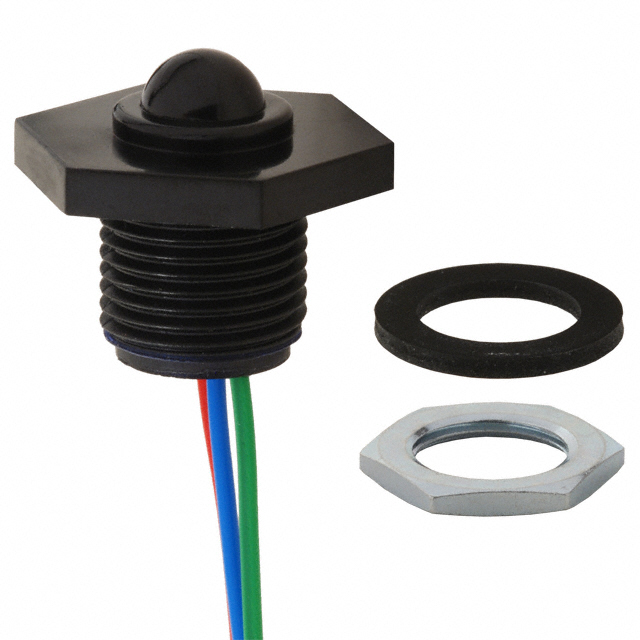

氟硅密封环,镀钢螺母(安装螺纹 M12 x 1mm)和 250mm 连接线
得捷:
SENSOR LIQUID LEV TYPE3 -40-125C
欧时:
Honeywell LLE103101 液位开关, 数字开关输出, 5bar, -40 → +125 °C
贸泽:
液位传感器 DRY ON, PANEL MOUNT 15mA 5-12V
艾睿:
The LLE103101 level sensor from Honeywell is the ideal tool to use when working with large volumes of water. This device has a maximum of 12 V. This part has a minimum operating temperature of -25 °C and a maximum of 80 °C.
Allied Electronics:
Phototransistor Level Switch; -40degC to +125degC
Chip1Stop:
Level Sensor 12V 3-Pin
TME:
Sensor: liquid level; -40÷125°C; Connection: lead 2,5m; 5÷12VDC
Verical:
Level Sensor 12V Automotive 5bar 3-Pin
Newark:
# HONEYWELL LLE103101 SENSOR, LEVEL, LIQUID, REAR FIXING
MASTER:
12V Automotive 5bar 3-Pin
Powell:
Sensors, Liquid Level Sensors
Online Components:
12V Automotive 5bar 3-Pin
DeviceMart:
SENSOR LIQUID LEV TYPE3 -40-125C
Electro Sonic:
12V Automotive 5bar 3-Pin
电源电压DC 5V ~ 12V
额定电流 5 mA
输出电流 40 mA
上升时间 50.0 µs
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 5V ~ 12V
电源电压 5.0VDC ~ 12.0VDC
安装方式 Panel
引脚数 3
高度 17.5 mm
电缆长度 250 mm
材质 Plastic
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, 车用, Automotive, Consumer Electronics, 传感与仪器, 医用, Medical, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8541408000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LLE103101 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
LLE103000 霍尼韦尔 | 功能相似 | LLE103101和LLE103000的区别 |
D103101 Durakool | 功能相似 | LLE103101和D103101的区别 |
