LM27951SDX/NOPB

LED照明驱动器 White LED Adaptive 1.5X/1X Switched Capacitor Current Driver 14-WSON -40 to 85

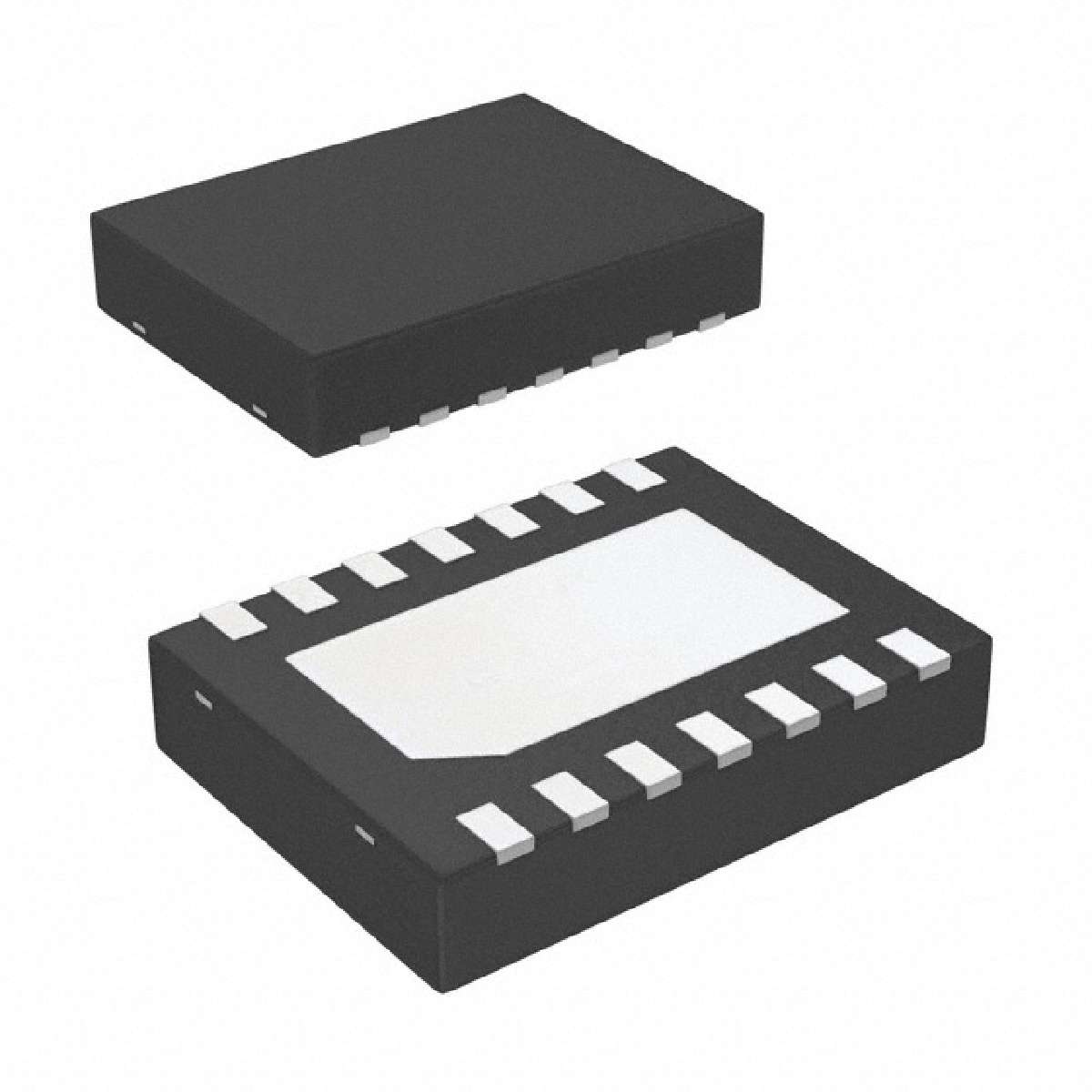

* Drives up to 4 LEDs with up to 30mA each * Regulated current sources with 0.2%typ. matching * 3/2x, 1x Gain transition based on LED VF * Peak Efficiency Over 85% * Input Voltage Range: 2.8V to 5.5V * PWM Brightness Control * Very Small Solution Size - NO INDUCTOR * Fixed 750kHz Switching Frequency * * 14-pin WSON Package: 4.0mm X 3.0mm X 0.8mm

得捷:
IC LED DRV RGLTR PWM 30MA 14WSON

立创商城:
LM27951SDX/NOPB

德州仪器TI:
White LED adaptive 1.5X/1X switched capacitor current driver with 2.8V-5.5V input voltage range

贸泽:
LED照明驱动器 White LED Adaptive 1.5X/1X Switched Capacitor Current Driver 14-WSON -40 to 85

艾睿:
LED DRVR 4Segment 3.3V/5V 14-Pin WSON EP T/R

安富利:
The LM27951 is a switched capacitor white-LED driver capable of driving up to 4 LEDs with 30mA through each LED. Its 4 tightly regulated current sources ensure excellent LED current and brightness matching. LED drive current is programmed by an external sense resistor. The LM27951 operates over an input voltage range from 2.8V to 5.5V and requires only four low-cost ceramic capacitors.The LM27951 provides excellent efficiency without the use of an inductor by operating the charge pump in a gain of 3/2, or in a gain of 1. Maximum efficiency is achieved over the input voltage range by actively selecting the proper gain based on the LED forward voltage requirements.The LM27951 uses constant frequency pre-regulation to minimize conducted noise on the input. It has a fixed 750kHz switching frequency optimized for portable applications. The LM27951 consumes less than 1µA of supply current when shut down.The LM27951 is available in a 14-pin No-Pullback WSON package.

Verical:
LED DRVR 4Segment 3.3V/5V 14-Pin WSON EP T/R

Win Source:
LED Driver IC 4 Output DC DC Regulator Switched Capacitor Charge Pump PWM Dimming 30mA 14-WSON 4x3
