LMV981MU3TBG

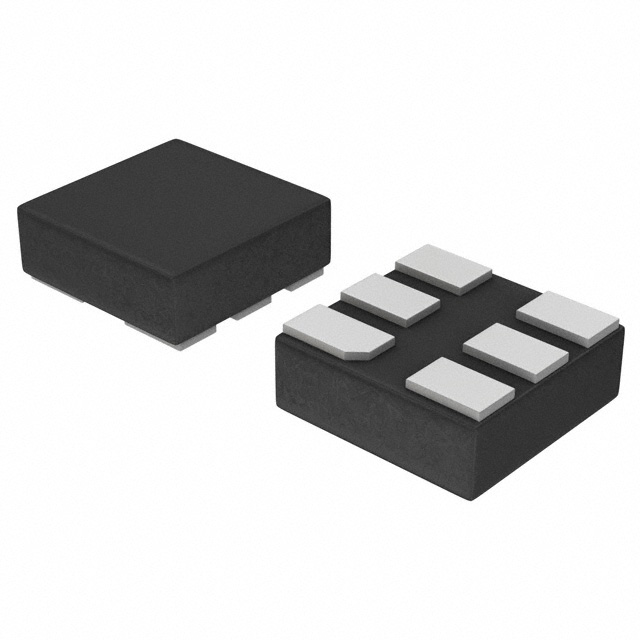

LMV981MU3TBG图片1
LMV981MU3TBG图片2
LMV981MU3TBG图片3
LMV981MU3TBG图片4
LMV981MU3TBG图片5
LMV981MU3TBG图片6
LMV981MU3TBG概述

LMV981, Low Power 1μA, Rail-to-Rail I/O, Operational Amplifier with Shutdown, ON SemiconductorPower supply from 1.8 V to 5 V Includes Shutdown feature which reduces Quiescent Current to 1μA, Max. ### 运算放大器,ON Semiconductor

General Purpose Amplifier 1 Circuit Rail-to-Rail 8-ULLGA 1.5x1.5


得捷:
IC OPAMP GP 1 CIRCUIT 8ULLGA


欧时:
### LMV981, Low Power 1μA, Rail-to-Rail I/O, Operational Amplifier with Shutdown, ON SemiconductorPower supply from 1.8 V to 5 V Includes Shutdown feature which reduces Quiescent Current to 1μA, Max. ### 运算放大器,ON Semiconductor


艾睿:
Op Amp Single Low Voltage Amplifier R-R I/O 5V 8-Pin ULLGA T/R


力源芯城:
低压运放


LMV981MU3TBG中文资料参数规格
技术参数

无卤素状态 Halogen Free

供电电流 95 µA

电路数 1

增益频宽积 1.5 MHz

输入补偿电压 1 mV

输入偏置电流 1 nA

工作温度Max 125 ℃

工作温度Min -40 ℃

增益带宽 1.5 MHz

共模抑制比Min 50 dB

封装参数

安装方式 Surface Mount

引脚数 8

封装 XFLGA-8

外形尺寸

长度 1.5 mm

宽度 1.5 mm

高度 0.35 mm

封装 XFLGA-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LMV981MU3TBG引脚图与封装图

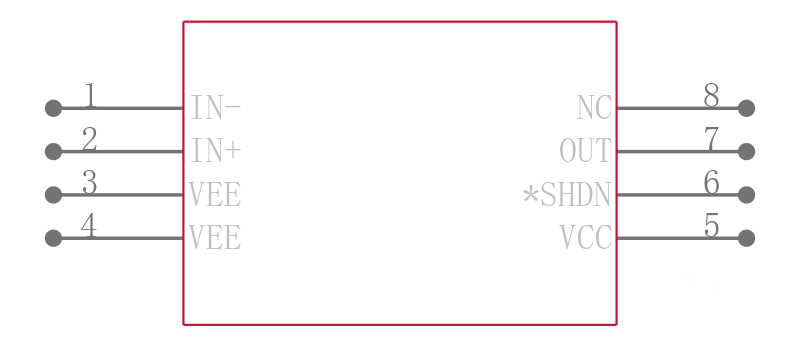

LMV981MU3TBG引脚图
LMV981MU3TBG封装图
LMV981MU3TBG封装焊盘图
在线购买LMV981MU3TBG
型号: LMV981MU3TBG
描述:LMV981, Low Power 1μA, Rail-to-Rail I/O, Operational Amplifier with Shutdown, ON Semiconductor Power supply from 1.8 V to 5 V Includes Shutdown feature which reduces Quiescent Current to 1μA, Max. ### 运算放大器,ON Semiconductor
替代型号LMV981MU3TBG
型号/品牌 代替类型 替代型号对比

LMV981MU3TBG

ON Semiconductor 安森美

当前型号

当前型号

LMV931SQ3T2G

安森美

功能相似

LMV981MU3TBG和LMV931SQ3T2G的区别

LMV981IRUGR

德州仪器

功能相似

LMV981MU3TBG和LMV981IRUGR的区别

LMV981IRUGRG4

德州仪器

功能相似

LMV981MU3TBG和LMV981IRUGRG4的区别
