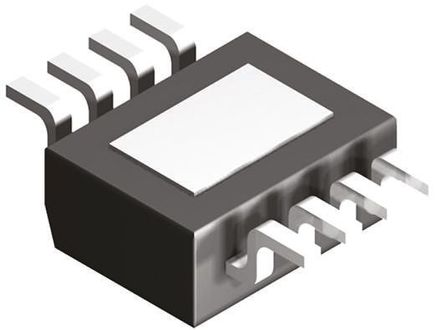

LM3414MR/NOPB

TEXAS INSTRUMENTS  LM3414MR/NOPB  发光二极管驱动器, 1输出, 降压, 恒流, 4.5V-42V输入, 1MHz开关, 1A输出, SOIC-8

LED 照明 - 照明，直流/直流 LED 驱动器，Texas Instruments

### LED 驱动器，Texas Instruments

立创商城:
LM3414MR/NOPB

得捷:
IC LED DRV RGLTR PWM 8SOPWRPAD

德州仪器TI:
42-V 60-W common Anode Capable constant current buck LED driver Requires No Ext. current sensing Res

欧时:
Texas Instruments LM3414MR/NOPB 36数字 18段 LED 驱动器, 4.5 → 65 V, 8引脚 SO PowerPAD封装

贸泽:
LED照明驱动器 COMM ANODE CAP CONST CRNT BUCK LED DRVR

e络盟:
发光二极管驱动器, 1输出, 降压, 恒流, 4.5V-42V输入, 1MHz开关, 1A输出, SOIC-8

艾睿:
LED Driver 3500uA Supply Current Automotive 8-Pin HSOIC EP Tube

安富利:
The LM3414 and LM3414HV are 1A 60W see Note below common anode capable constant current buck LED drivers. They are exceptionally suitable to drive single string of 3W HBLED with up to 96% efficiency. They accept input voltages from 4.5VDC to 65VDC and deliver up to 1A average LED current with ±3% accuracy. The integrated low-side N-channel power MOSFET and current sensing element realize simple and low component count circuitry as no bootstrapping capacitor and external current sensing resistor are required. An external small-signal resistor to ground provides very fine LED current adjustment, analog dimming as well as thermal fold-back functions.Constant switching frequency operation eases EMI. No external loop compensation network is needed. The proprietary Pulse-Level-Modulation PLM control method benefits in high conversion efficiency and true average LED current regulation. Fast response time realizes fine LED current pulse fulfilling the 240 Hz 256-step dimming resolution requirement for general lighting.The LM3414 and LM3414HV are available in SOIC-8 and 3mm x 3mm WSON-8 packages.**Note:** Thermal de-rating applies according to actual operation conditions

Chip1Stop:
LED DRVR 5V/9V/12V/15V/18V/24V 8-Pin HSOP EP Rail

Verical:
LED Driver 3500uA Supply Current Automotive 8-Pin HSOP EP Tube

Newark:
# TEXAS INSTRUMENTS  LM3414MR/NOPB  LED DRIVER, CONSTANT CURRENT, SOIC-8

DeviceMart:
IC LED DRIVER BUCK 1A 8-PSOP

Win Source:
LED Driver IC 1 Output DC DC Regulator Step-Down Buck Analog, PWM Dimming 1A 8-SO PowerPad
