LED照明驱动器 High Power Switched Capacitor Voltage Converter/Flash LED Driver 10-WSON -40 to 85
The LM2753 is capable of driving a flash LED with a pulsed current of 400 mA at an input voltage of 3.6 V. A switched-capacitor doubler, the LM2753 provides a regulated 5-V output VOUT over an input supply range of 3 V to 5.5 V. The switched output, IOUT, takes less than 10 ns to turn on and provide maximum current to a flash LED. Flash LED current is set via a ballast resistor. Continuous illumination current torch mode is programmed by connecting a resistor between IOUT and VOUT. This device uses only three small, low-cost ceramic capacitors.
The LM2753 device uses pulse frequency modulation PFM regulation. Typical operating frequency is 725 kHz. Under no-load conditions, the LM2753 operates on only 60 µA. If the output is connected to ground, the charge pump stays in the gain of 1, which helps limit the input current to 300 mA typical.
频率 725 kHz
输出接口数 1
输出电压 4.75V ~ 5.25V
静态电流 60.0 µA
拓扑结构 Boost
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 3 V
输入电压 3V ~ 5.5V

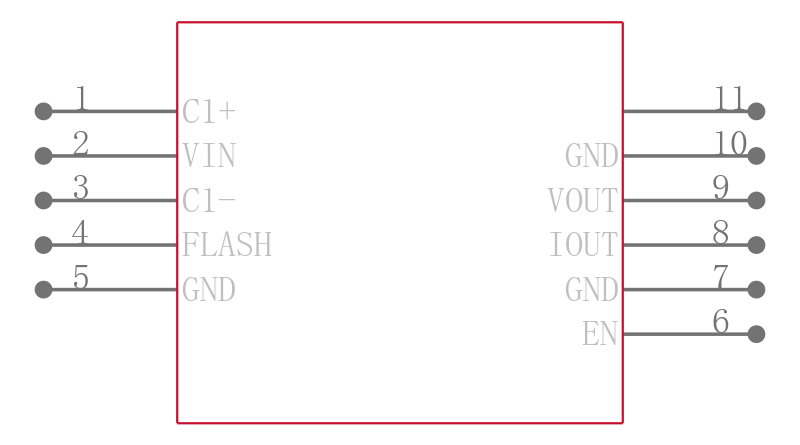

安装方式 Surface Mount
引脚数 10
封装 WSON-10
长度 3 mm
宽度 3 mm
高度 0.8 mm
封装 WSON-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2753SDX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2753SDX 德州仪器 | 完全替代 | LM2753SDX/NOPB和LM2753SDX的区别 |
