LM8335通用输出扩展器,带有MIPI® RFFE主机接口 LM8335 General Purpose Output Expander with MIPI® RFFE Host Interface
The LM8335 General Purpose Output Expander is a dedicated device to provide flexible and general purpose, host programmable output expansion functions. This device communicates with a host processor through a MIPI® RFFE Interface Mobile Industry Processor Interface RF Front-End.
Eight general purpose outputs GPO can be configured by the host controller as drive high/low/high-z. Weak pull-ups PU or weak pull-downs PD can be enabled.
Upon power-on, the LM8335 default configuration is for all GPO to be set based on the state of the CFG pin.
After startup, any changes to the default configuration must be sent from the host via the MIPI RFFE host interface..

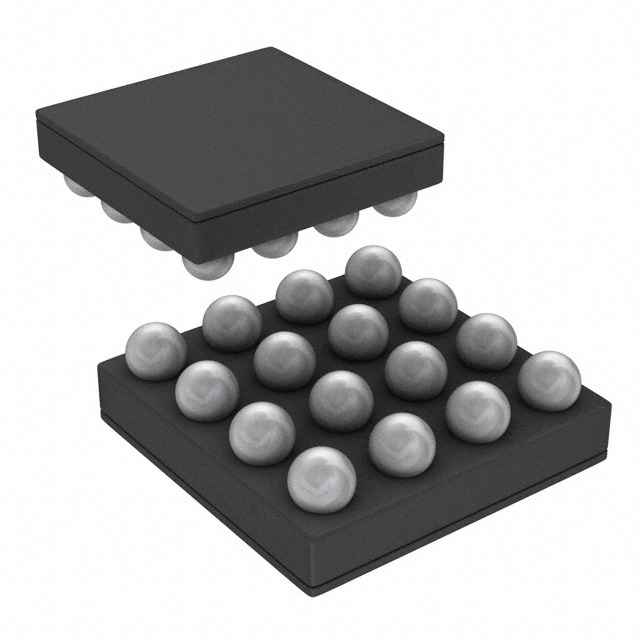

The LM8335 is available in a 16-bump lead-free DSBGA package of size 1.965 mm x 1.965 mm x 0.6 mm 0.5 mm pitch.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM8335TLE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM8335TLX/NOPB 德州仪器 | 完全替代 | LM8335TLE/NOPB和LM8335TLX/NOPB的区别 |
