LINEAR TECHNOLOGY LT3491EDC#TRMPBF 发光二极管驱动器, 1输出, 升压逐步上升, 2.5V-12V输入, 2.3MHz开关, 27V/200mA输出, DFN-6
The is a fixed frequency step-up DC/DC Converter specifically designed to drive up to six white LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the need for ballast resistors. The device features unique high-side LED current sense that enables the part to function as a one wire current source, one side of the LED string can be returned to ground anywhere, allowing a simpler one wire LED connection. Traditional LED drivers use a grounded resistor to sense LED current, requiring a 2-wire connection to the LED string. The 2.3MHz switching frequency allows the use of tiny inductors and capacitors. A single pin performs both shutdown and accurate LED dimming control.
频率 2.3 MHz
输出接口数 1
输入电压DC 2.50V ~ 12.0V
输出电压 27 V
输出电流 200 mA
针脚数 6
开关频率 2.3 MHz
拓扑结构 Boost
输入电压Max 12 V
输入电压Min 2.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 12V
电源电压Max 12 V
电源电压Min 2.5 V
输入电压 2.5V ~ 12V
安装方式 Surface Mount
引脚数 6

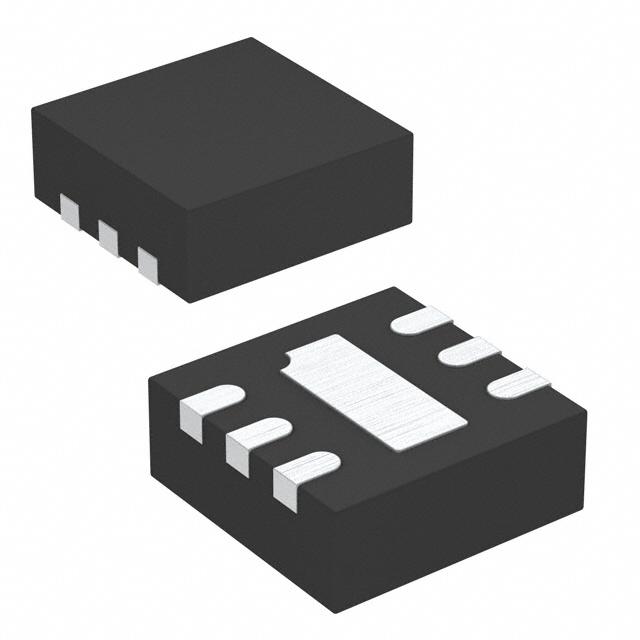

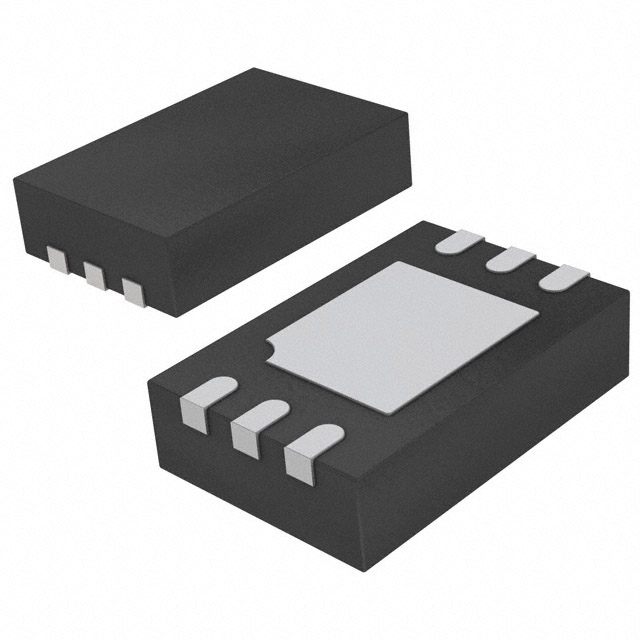

封装 DFN-6
封装 DFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, 便携式器材, 音频, 背光, Portable Devices, 消费电子产品, Audio, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3491EDC#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3491EDC#TRPBF 凌力尔特 | 完全替代 | LT3491EDC#TRMPBF和LT3491EDC#TRPBF的区别 |
