LINEAR TECHNOLOGY LT3590ESC8#TRMPBF 发光二极管驱动器, 1输出, 降压逐步下降, 4.5V-55V输入, 850kHz开关, 55V/50mA输出, SC-70-8
The is a fixed frequency Buck Mode Converter specifically designed to drive up to 10 LEDs in series from a 48V DC source. Series connection of the LEDs provides identical LED currents of up to 50mA, resulting in uniform brightness and eliminating the need for ballast resistors. A fixed frequency, current mode architecture results in stable operation over a wide range of input voltage and output voltage. The high switching frequency of 850kHz permits the use of tiny, low profile inductors and capacitors. A single pin performs both shutdown and accurate LED dimming control.
- .
- Internal Schottky diode
- .
- Control circuitry
- .
- CTRL input performs dimming and shutdown
- .
- 91% Efficiency
- .
- Requires only 1µF output capacitor
频率 850 kHz
输出接口数 1
输入电压DC 4.50V ~ 55.0V
输出电压 55 V
输出电流 50 mA
通道数 1
针脚数 8
开关频率 850 kHz
输入电压Max 55 V
输入电压Min 4.5 V
输出电压Max 55 V
输出电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5.55 VDC
电源电压Max 55 V
电源电压Min 4.5 V
输入电压 4.5V ~ 55V
安装方式 Surface Mount
引脚数 8

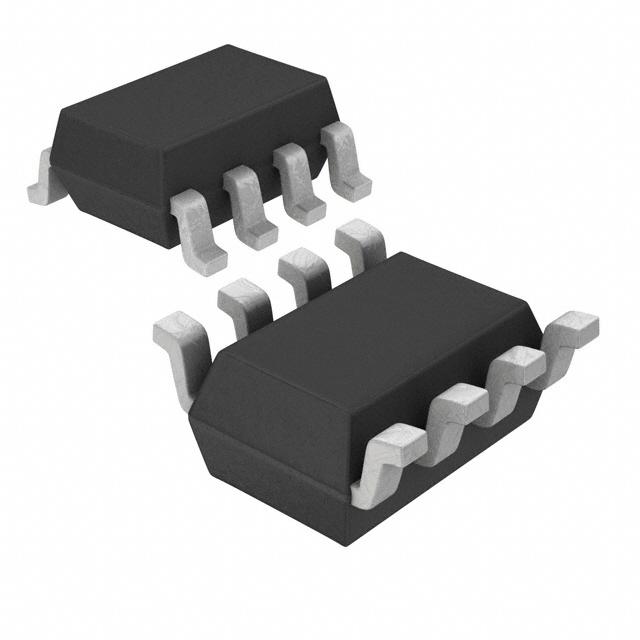

封装 SC-70-8
封装 SC-70-8
工作温度 -40℃ ~ 85℃ TJ
产品生命周期 Unknown

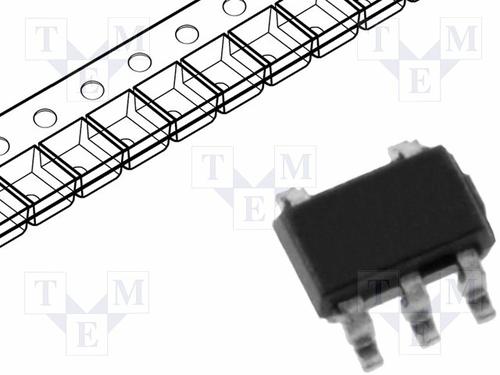

包装方式 Cut Tape CT
制造应用 发光二极管照明, LED Lighting, 标牌, Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3590ESC8#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3590ESC8#TRPBF 凌力尔特 | 完全替代 | LT3590ESC8#TRMPBF和LT3590ESC8#TRPBF的区别 |
